VSC
Type R9

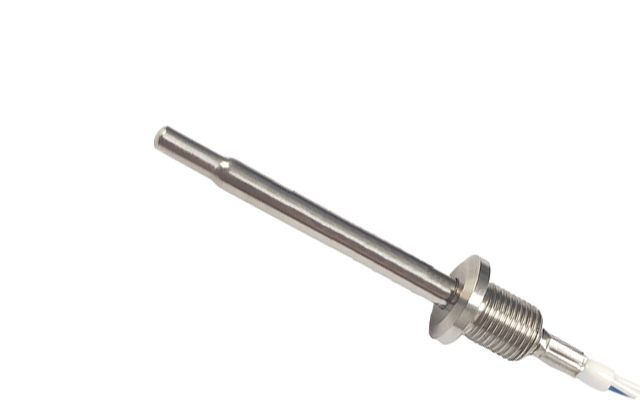

Description： This temperature sensor adopts NTC glass-sealed thermistor, PT100/1000, with heat resistance and good stability.
Features： 1. Material: SUS304 stainless steel shell, Teflon wire. (Customized specifications are acceptable)
2. The front end of the shell is designed with thread, which is easy to use and accurate in temperature measurement,
so it has heat resistance, good moisture resistance and higher stability.
3. Installed inside the charging gun, used for terminal and cable temperature detection.
4. Excellent breakdown resistance, up to 5000VDC withstand voltage.
5. Application: Temperature sensor for charging gun.
◆Characteristics
Working temperature range: -40 to 150°C
Thermal time constant: Approximately. 5 seconds (in warm water)
Withstand voltage: AC1800V/3S without breakdown or flicker (cut-off current 1mA)
Insulation resistance: DC 500V resistance 100mΩ or more (between component and lead)
◆Order Map
| VSC | - R9 | - 102 | □ - | □□ | □□□ | - □□ |
| Series Code | Type | Res. value | Res. Tolerance | Wire Gauge | Length | Connector |
| VSC | R9 | at 0℃ / 25℃ 102 x 1000 Ω |
A : 0.06 % |
AWG Number | Exp : 400 400: 400 mm |
