VDF
Type M2

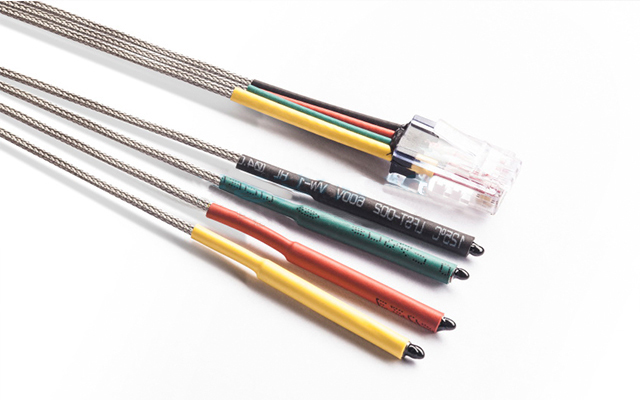

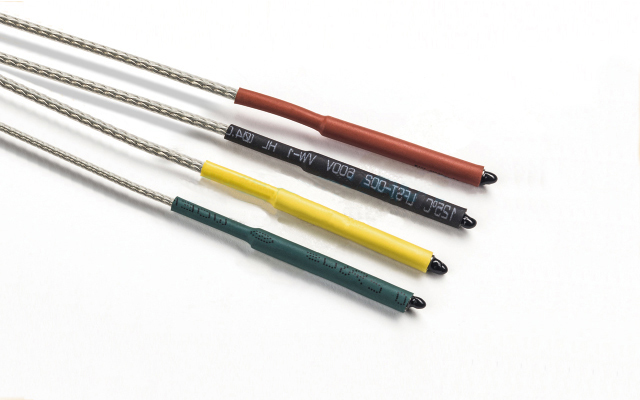

Description： This temperature sensor adopts NTC single-ended glass-encapsulated resistor, which has heat resistance and good stability.
Features： 1. Material: Ester Tube Housing/Silicone/Teflon Mask Sheathed Wire.
2. Adopt high temperature insulating silicone resin package, stable temperature measurement,
easy installation, strong tensile resistance, and high-pressure resistance.
3. The tail quick multi-group connectors are suitable for more occasions to meet the product needs of different customers.
The shell has excellent sealing performance.
4. Product moisture-proof treatment.
5. Application: Suitable for cable temperature detection, electrical cabinet temperature detection, equipment room temperature monitoring.
◆Characteristics
Working temperature range: -40 to 200°C
Thermal time constant: about t < 38 seconds (medium: gaseous)
Withstand voltage: AC1200V/1S without breakdown or flicker (cut-off current 1mA)
Insulation resistance: DC 500V resistance 100mΩ or more (between component and lead)
◆Order Map
| VDF | - M2 | - 102 | □ - | □□ | □□□ | - □□ |
| Series Code | Type | Res. value | Res. Tolerance | Wire Gauge | Length | Connector |
| VDF | M2 | at 25℃ 102 x 1000 Ω |
F :1% |
AWG Number | Exp : 400 400: 400 mm |
