VHO
Type T8

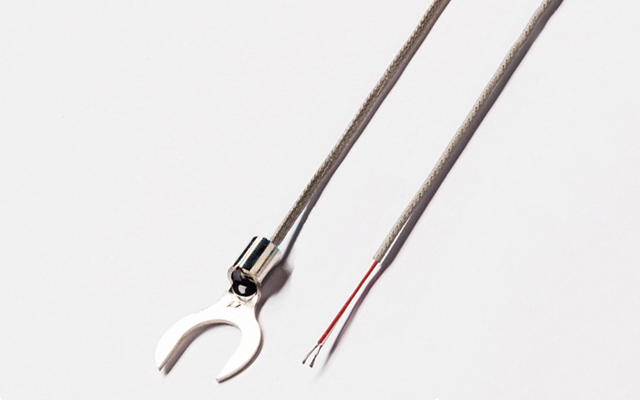

Description： This temperature sensor adopts NTC glass sealed thermistor with heat resistance and good stability.
Features： 1. Material: Copper Nickel Plated Mounting Hole Terminal/High Temperature Teflon Shielded network Cable.
2. Has a wide resistance range: 2,000Ω to 500,000Ω.
3. There are various sizes of holes for customization, a wide range of installation applications,
pin-shaped installation holes, convenient and fast installation, and can accept customized specifications.
4. Copper nickel-plated shell, in line with environmental protection standards, surface-mounted temperature sensing,
fast sensing speed, faster/accurate temperature measurement.
5. Application: Electrical fire alarm. Electric meter, air switch, special temperature sensor for temperature measurement of mechanical equipment.
◆Characteristics
Operating temperature range: -40-200℃ (products can be customized)
Thermal time constant: approx. 5 seconds (in warm water)
Withstand voltage: AC1500V/2S without breakdown or flicker (cut-off current 1mA)
Insulation resistance: DC 500V resistance 100mΩ or more (between component and lead)
◆Order Map
| VHO | - T8 | - 102 | □ - | □□ | □□□ | - □□ |
| Series Code | Type | Res. value | Res. Tolerance | Wire Gauge | Length | Connector |
| VHO | T8 | at 25℃ 102 x 1000 Ω |
F :1% |
AWG Number | Exp : 400 400: 400 mm |
