VDF
Type M1

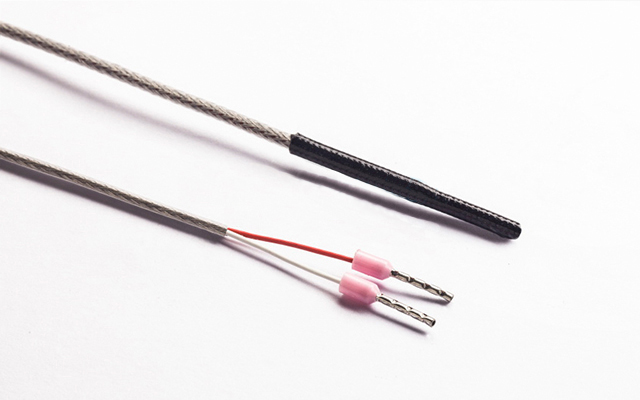

Description： This temperature sensor adopts NTC single-ended glass-encapsulated resistor, which has heat resistance and good stability.
Features： 1. Material: Ester Tube Housing/Silicone/Teflon Mask Sheathed Wire.
2. Encapsulated with high temperature insulating silicone resin tube, stable temperature measurement,
easy installation, strong tensile resistance, and high-pressure resistance.
3. The tail quick connector is suitable for more occasions to meet the product needs of different customers.
the shell has excellent sealing performance and the product is moisture-proof.
4. Application: Suitable for anti-channel temperature measurement, fire temperature monitoring.
◆Characteristics
Working temperature range: -40 to 200°C
Thermal time constant: Approximately. 3 seconds (in warm water)
Withstand voltage: AC1700V/3S without breakdown or flicker (cut-off current 1mA)
Insulation resistance: DC 500V resistance 100mΩ or more (between component and lead)
◆Order Map
| VDF | - M1 | - 102 | □ - | □□ | □□□ | - □□ |
| Series Code | Type | Res. value | Res. Tolerance | Wire Gauge | Length | Connector |
| VDF | M1 | at 25℃ 102 x 1000 Ω |
F :1% |
AWG Number | Exp : 400 400: 400 mm |
