VGT
Type R4

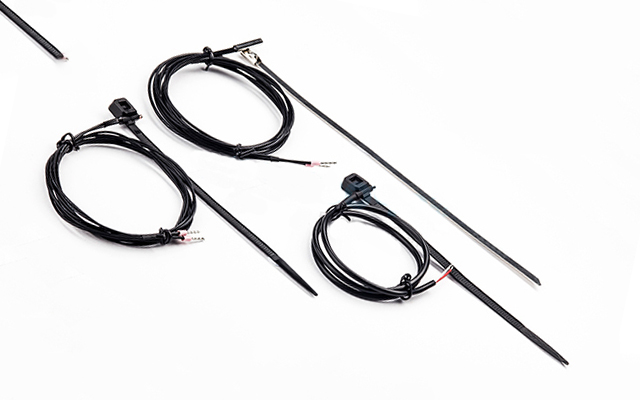

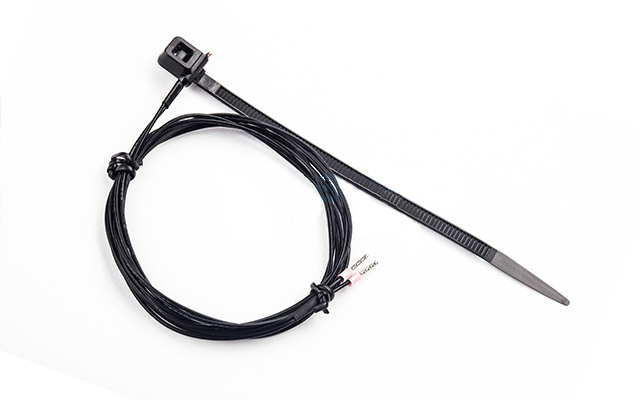

Description： This temperature sensor adopts NTC glass sealed thermistor, which has heat resistance and good stability.
Features： 1. Material: NTC glass single seal thermistor/plastic cable tie/Teflon wire.

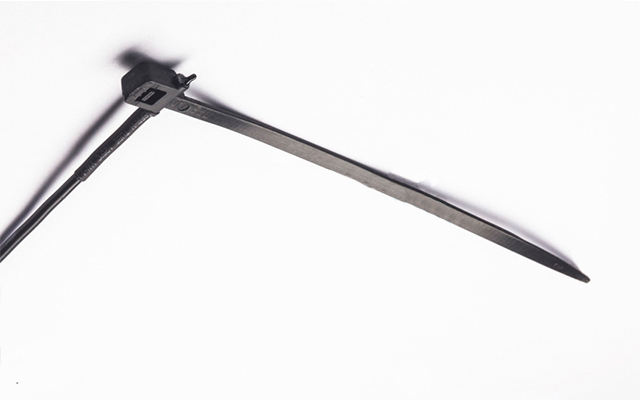

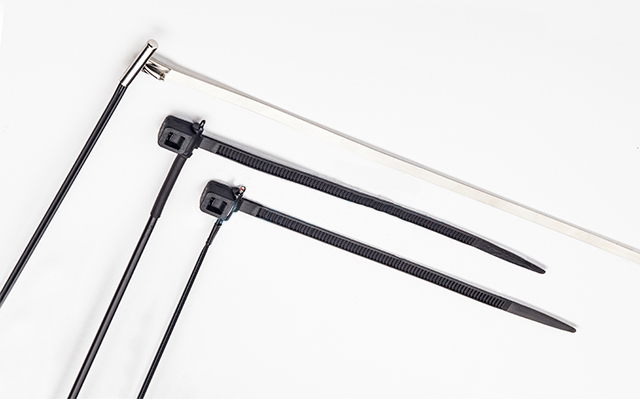

2. Quick cable tie housing for quick installation and use Output signal: analog signal output.
3. Wide resistance range: 2,000~500,000 Ω.
4. Small size, robust structure, easy automatic installation, fast thermal induction and high sensitivity.
5. Application: Suitable for anti-channel temperature measurement, school fire temperature monitoring, etc.
◆Characteristics
Working temperature range: -30 to 150°C
Thermal time constant: Approximately. 3 seconds (in warm water)
Withstand voltage: AC1500V/2S without breakdown or flicker (cut-off current 1mA)
Insulation resistance: DC 500V resistance 100mΩ or more (between component and lead)
◆Order Map
| VGT | - R4 | - 102 | □ - | □□ | □□□ | - □□ |
| Series Code | Type | Res. value | Res. Tolerance | Wire Gauge | Length | Connector |
| VGT | R4 | at 25℃ 102 x 1000 Ω |
F :1% |
AWG Number | Exp : 400 400: 400 mm |
