VNA
Type P6

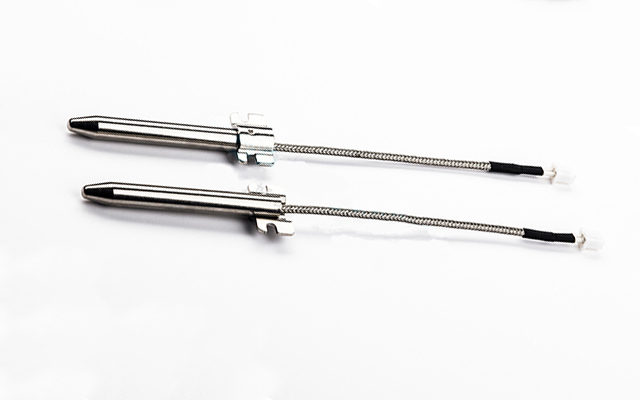

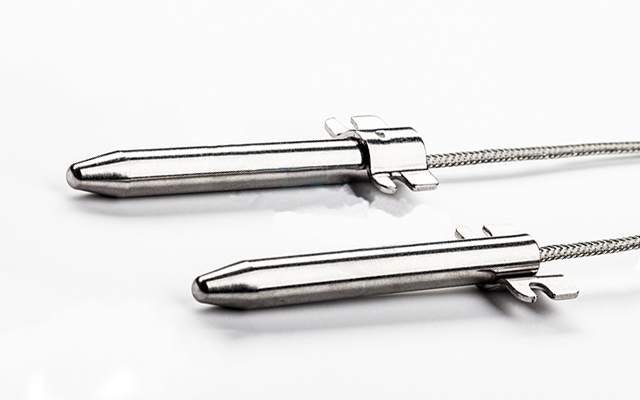

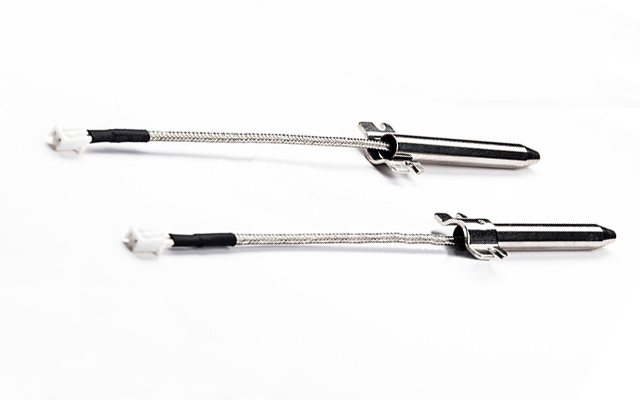

Description： This temperature sensor adopts PT100/1000 platinum resistance, which has heat resistance and good stability.
Features： 1. Material: 600℉ high temperature resistant PT1000 platinum resistance chip / SUS304 stainless steel shell / high temperature steel mesh mask wire.
2. This product is a special temperature sensor for wood pellet smokers, which is resistant to high temperature, has fast response speed, high precision,
and good stability. The components can effectively improve the temperature measurement speed. (Customized specifications are acceptable)
3. The front end of the shell is treated with depressurization to make the probe part more penetrable.
All products are made of high-temperature materials and designs, which can be used in high-temperature environments for a long time.
4. Application: Special temperature sensor for wood pellet smoker.
◆Characteristics
Working temperature range: -45 to 500°C
Thermal time constant: Approximately. 3 seconds (in warm water)
Withstand voltage: AC1800V/3S without breakdown or flicker (cut-off current 1mA)
Insulation resistance: DC 500V resistance 100mΩ or more (between component and lead)
◆Order Map
| VNA | - P6 | - 102 | □ - | □□ | □□□ | - □□ |
| Series Code | Type | Res. Value | Res. Tolerance | Wire Gauge | Length | Connector |
| VNA | P6 | at 0℃ 102 x 1000 Ω |
A : 0.06 % B : 0.12 % |
AWG Number | Exp : 400 400: 400 mm |
