VNA
Type P5

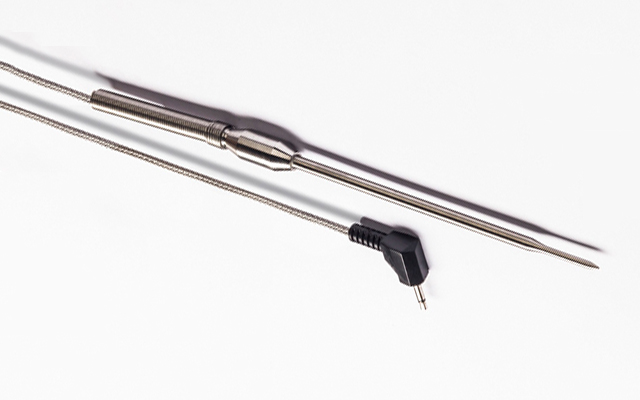

Description： This temperature sensor uses a high temperature K-type thermocouple, which has high temperature resistance and high stability and has a sensitive response.
Features： 1. Material: SUS304 stainless steel probe/SUS304 stainless steel spring handle/K type thermocouple mask steel mesh cable.

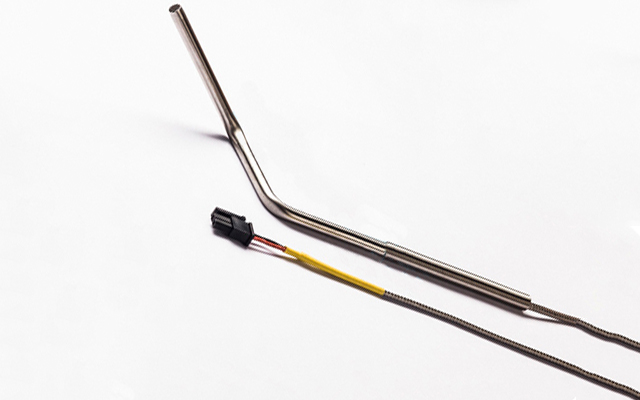

2. This product has a special curved structure, which is convenient for detecting the temperature in a specific area and has higher stability.
3. The length and diameter of the shell and the appearance of the length can be customized according to customer requirements.
the plug-in temperature measurement structure makes the penetration of the probe part better.
4. Using high temperature K-type thermocouple, all products use high temperature materials and design,
can be used in high temperature environment for a long time.
5. Application: Suitable for pellet heating stoves, tin stoves, etc …
◆Characteristics
Working temperature range: -40 to 500°C
Thermal time constant: Approximately. 3 seconds (in warm water)
Withstand voltage: AC1800V/3S without breakdown or flicker (cut-off current 1mA)
Insulation resistance: DC 500V resistance 100mΩ or more (between component and lead)
◆Order Map
| VNA | - P5 | - 102 | □ - | □□ | □□□ | - □□ |
| Series Code | Type | Res. value | Res. Tolerance | Wire Gauge | Length | Connector |
| VNA | P5 | at 25℃ 102 x 1000 Ω |
|
AWG Number | Exp : 400 400: 400 mm |
