VNA
Type P3
Description： This temperature sensor adopts NTC (epoxy sealed, glass sealed thermistor… etc.) linear PTC thermistor, with heat resistance and good stability.

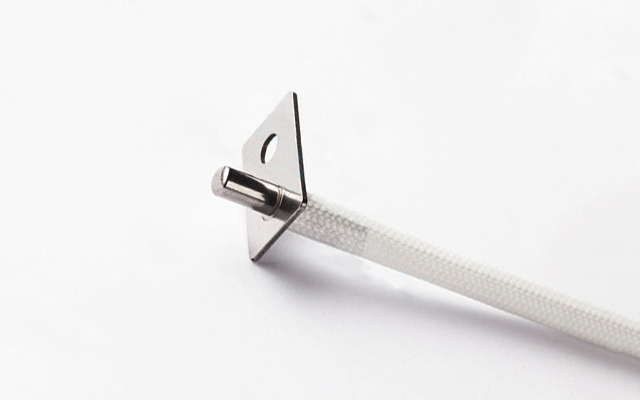

Features： 1. Material: SUS304 stainless steel housing with mounting holes/high temperature Teflon wire and glass fiber sheath.

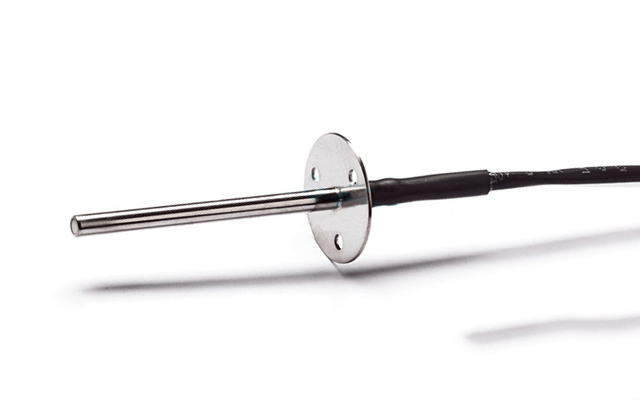

2. Adopt flange type installation structure, easy to install, SUS304 food grade stainless steel shell, responsive.
3. The length and diameter of the shell can be customized to meet the product needs of different customers,
the shell has excellent sealing performance, and the product is moisture-proof.
4. Application: Suitable for household ovens, industrial ovens, high temperature furnaces, drying rooms, etc.
◆Characteristics
Working temperature range: -40 to 125°C
Thermal time constant: Approximately. 3 seconds (in warm water)
Withstand voltage: AC1500V/2S without breakdown or flicker (cut-off current 1mA)
Insulation resistance: DC 500V resistance 100mΩ or more (between component and lead)
◆Order Map
| VNA | - P3 | - 102 | □ - | □□ | □□□ | - □□ |
| Series Code | Type | Res. value | Res. Tolerance | Wire Gauge | Length | Connector |
| VNA | P3 | at 25℃ 102 x 1000 Ω |
F :1% |
AWG Number | Exp : 400 400: 400 mm |
