VNA
Type P2

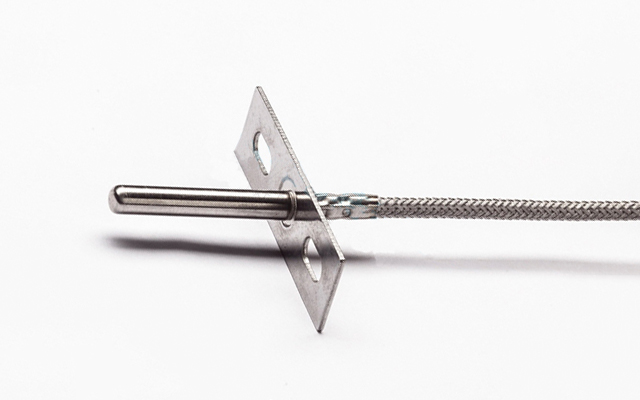

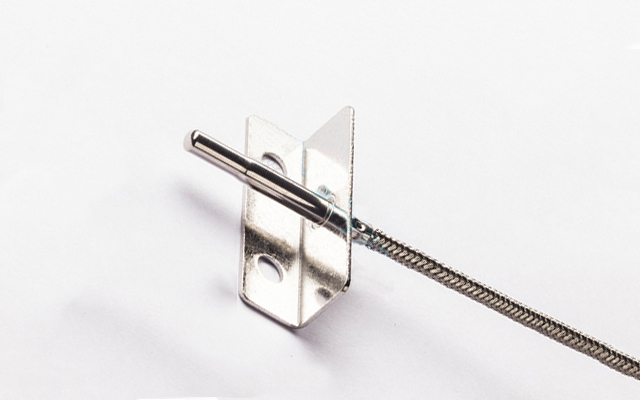

Description： This temperature sensor, using platinum resistance (PT1000/PT100), has high temperature resistance and high stability, and has a sensitive response.
Features： 1. Material: SUS304 stainless steel shell / high temperature steel mesh mica wire.
2. Shell length diameter and length appearance can be customized according to customer requirements,
and the probe part has high penetrability and stability.
3. High-temperature platinum resistance (PT1000/PT100) products are all made of high-temperature materials and designs,
which can be used in high-temperature environments for a long time.
4. Application: Suitable for pellet stove ovens, household ovens, grills, ovens, etc.
◆Characteristics
Working temperature range: -30 to 450°C
Thermal time constant: Approximately. 3 seconds (in warm water)
Withstand voltage: AC1800V/3S without breakdown or flicker (cut-off current 1mA)
Insulation resistance: DC 500V resistance 100mΩ or more (between component and lead)
◆Order Map
| VNA | - P2 | - 102 | □ - | □□ | □□□ | - □□ |
| Series Code | Type | Res. Value | Res. Tolerance | Wire Gauge | Length | Connector |
| VNA | P2 | at 0℃ 102 x 1000 Ω |
A : 0.06 % B : 0.12 % |
AWG Number | Exp : 400 400: 400 mm |
