VNA
Type P1

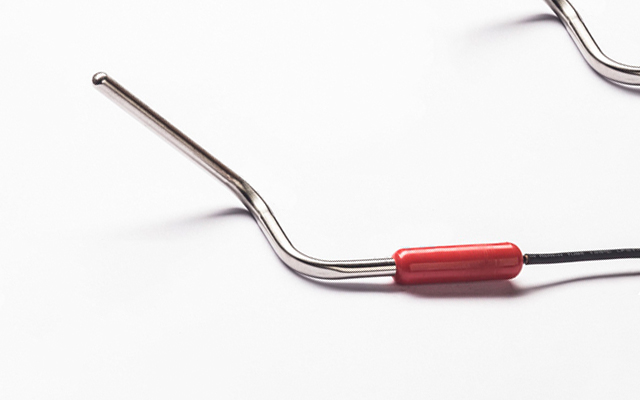

Description： This temperature sensor uses a high temperature K-type thermocouple, which has high
temperature resistance and high stability and has a sensitive response.
Features： 1. Material: SUS304 stainless steel probe/K-type thermocouple mask steel mesh wire/high temperature injection handle.
2. This product has a special curved structure, which is convenient for detecting the temperature in a specific area and has higher stability.
3. The length and diameter of the shell and the appearance of the length can be customized according to customer requirements.
The plug-in temperature measurement structure makes the penetration of the probe part better.
4. Using high-temperature K-type thermocouples, all products use high-temperature materials and designs, and can be used in high-temperature environments for a long time.
5. Application: Suitable for pellet heating stoves/tin stoves, etc.
◆Characteristics
Working temperature range: -40 to 500°C
Thermal time constant: Approximately. 3 seconds (in warm water)
Withstand voltage: AC1800V/3S without breakdown or flicker (cut-off current 1mA)
Insulation resistance: DC 500V resistance 100mΩ or more (between component and lead)
◆Order Map
| VNA | - P1 | - 102 | □ - | □□ | □□□ | - □□ |
| Series Code | Type | Res. value | Res. Tolerance | Wire Gauge | Length | Connector |
| VNA | P1 | at 25℃ 102 x 1000 Ω |
F :1% |
AWG Number | Exp : 400 400: 400 mm |
