VBQ
Type V6
Description： This temperature sensor adopts NTC single-ended glass-sealed resistor, which has heat resistance and good stability.

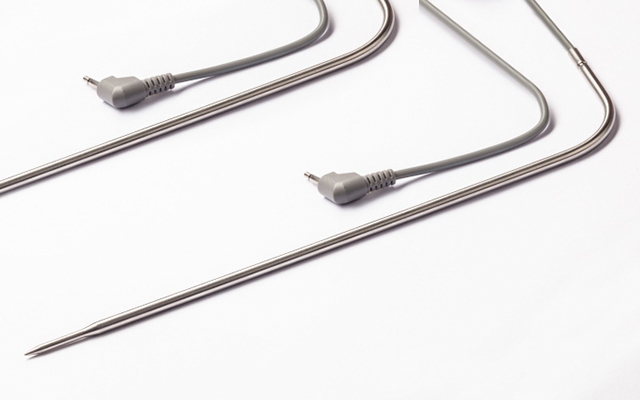

Features： 1. Material: SUS304 stainless steel probe/silicon sheathed wire/3.5 secondary audio plug.
2. This product uses SUS316 food grade stainless steel tube, which can use smaller components to effectively improve the temperature measurement speed and has higher stability. (Customized specifications are acceptable)
3. The front end of the shell adopts the step-down treatment and the plug-in temperature measurement structure, which makes the probe part penetrate better.
4. Special temperature sensor for food thermometer, all products use high temperature materials and design, can be used in high temperature environment for a long time.
5. Application: BBQ barbecue temperature measurement / oven food temperature measurement.
◆Characteristics
Working temperature range: -50 to 250°C
Thermal time constant: Approximately. 3 seconds (in warm water)
Withstand voltage: AC1800V/3S without breakdown or flicker (cut-off current 1mA)
Insulation resistance: DC 500V resistance 100mΩ or more (between component and lead)
◆Order Map
| VBQ | - V6 | - 102 | □ - | □□ | □□□ | - □□ |
| Series Code | Type | Res. Value | Res. Tolerance | Wire Gauge | Length | Connector |
| VBQ | V6 | at 25℃ 102 x 1000 Ω |
F :1% H :3 % J :5 % |
AWG Number | Exp : 400 400: 400 mm |
