VHO
Type T8

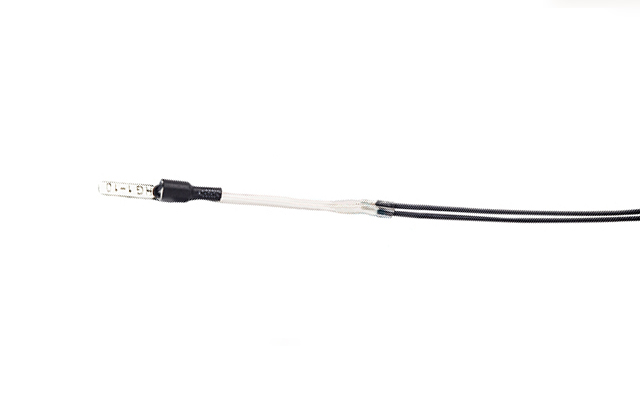

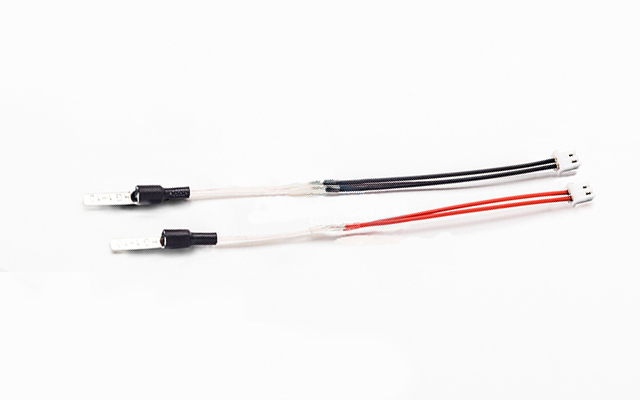

Description： This temperature sensor adopts NTC glass sealed thermistor, PT100/1000, with heat resistance and good stability.
Features： 1. Material: Copper nickel-plated laminate/high temperature Teflon wire.
2. Welded and fixed on the module, used for module temperature detection, fitted installation,
effective heat conduction, small size and fast response speed.
3. Installed in the new energy module,
used for temperature measurement of instruments and meters,
digital temperature sensor, no conversion, direct reading.
4. Application: For new energy modules, instrumentation temperature sensor.
◆Characteristics
Operating temperature range: -40-200℃ (products can be customized)
Thermal time constant: approx. 5 seconds (in warm water)
Withstand voltage: AC1800V/3S without breakdown or flicker (cut-off current 1mA)
Insulation resistance: DC 500V resistance 100mΩ or more (between component and lead)
◆Order Map
| VHO | - T8 | - 102 | □ - | □□ | □□□ | - □□ |
| Series Code | Type | Res. value | Res. Tolerance | Wire Gauge | Length | Connector |
| VHO | T8 | at 0℃ / 25℃ 102 x 1000 Ω |
A : 0.06 % |
AWG Number | Exp : 400 400: 400 mm |
