VTA
Type A2

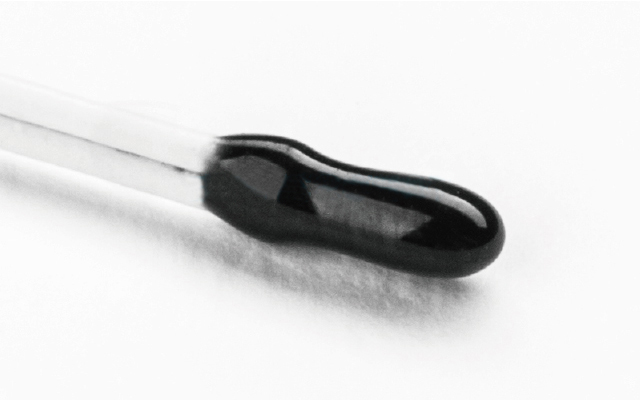

Description： This temperature sensor adopts NTC (epoxy sealed, glass sealed thermistor…etc.) with good stability.
Features： 1. Material: Epoxy/sheathed wire.
2. Small accumulation, fast response, strong moisture resistance and good weather resistance.
3. All materials are in line with medical environmental protection, B value: R25/50=3934K±0.3% (can be customized according to customer requirements).
4. The accuracy of 37 degrees Celsius can reach plus or minus 0.1 degrees Celsius, resistance value: R37=1.355K±0.3% (can be customized according to customer requirements).
5. Application: Esophagus rectum nasopharyngeal head axillary temperature sensor.
◆Characteristics
Operating temperature range: 0 to 70°C
Thermal time constant: Approximately. 3 seconds (in warm water)
Withstand voltage: AC750V/3S without breakdown or flicker
Insulation resistance: DC 500V resistance 100mΩ or more (between component and lead)
◆Order Map
| VTA | - A2 | - 102 | □ - | □□ | □□□ | - □□ |
| Series Code | Type | Res. Value | Res. Tolerance | Wire Gauge | Length | Connector |
| VTA | A2 | at 25℃ 102 x 1000 Ω |
F :1% H :3 % J :5 % |
AWG Number | Exp : 400 400: 400 mm |
