VPX
Type S2

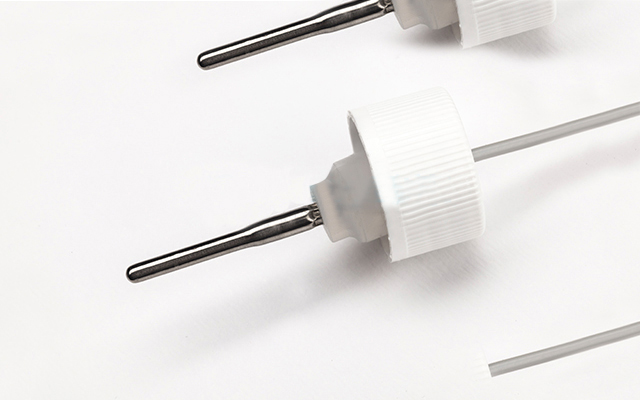

Description： This temperature sensor adopts NTC (epoxy sealed, glass sealed thermistor…etc.) with good stability.
Features： 1. Material: Medical PVC housing inside/white epoxy encapsulated metal housing/PVC sheathed wire.
2. Fast response, strong moisture resistance, good weather resistance.
3. All materials are in line with medical environmental protection, B value: R25/50=3934K±0.3% (can be customized according to customer requirements).
4. Stamping fixing method, waterproof rubber ring protection, in metal shell protection tube, epoxy resin encapsulation structure.
5. Application: Temperature sensor for medical drug temperature measurement.
◆Characteristics
Working temperature range: -20 to 80°C
Thermal time constant: Approximately. 5 seconds (in warm water)
Withstand voltage: AC1200V/1S without breakdown or flicker (cut-off current 1mA)
Insulation resistance: DC 500V resistance 100mΩ or more (between component and lead)
◆Order Map
| VPX | - S2 | - 102 | □ - | □□ | □□□ | - □□ |
| Series Code | Type | Res. Value | Res. Tolerance | Wire Gauge | Length | Connector |
| VPX | S2 | at 25℃ 102 x 1000 Ω |
F :1% H :3 % J :5 % |
AWG Number | Exp : 400 400: 400 mm |
