VTA
Type A6

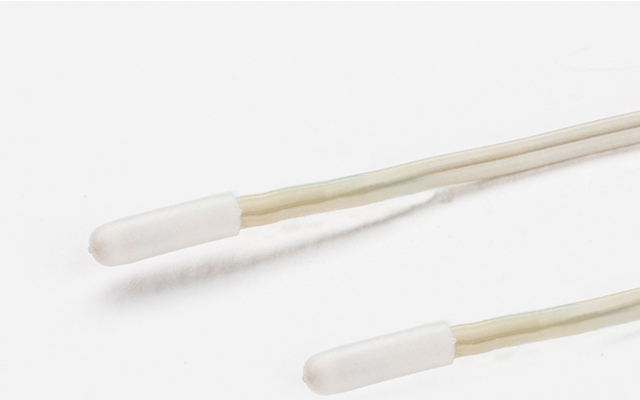

Description： This temperature sensor adopts NTC (epoxy sealed, glass sealed thermistor…etc.) with good stability.
Features： 1. Material: White epoxy/PVC sheathed wire.
2. Small accumulation, fast response, strong moisture resistance and good weather resistance.
3. All products use room temperature materials and designs, it is recommended to use at room temperature.
4. Epoxy resin encapsulation, small diameter, good waterproof, easy to use, accurate temperature measurement.
5. Application: Temperature sensors for medical and air conditioners.
◆Characteristics
Working temperature range: -50 to 125°C
Thermal time constant: Approximately. 5 seconds (in warm water)
Withstand voltage: AC1800V/3S without breakdown or flicker (cut-off current 1mA)
Insulation resistance: DC 500V resistance 100mΩ or more (between component and lead)
◆Order Map
| VTA | - A6 | - 102 | □ - | □□ | □□□ | - □□ |
| Series Code | Type | Res. Value | Res. Tolerance | Wire Gauge | Length | Connector |
| VTA | A6 | at 25℃ 102 x 1000 Ω |
F :1% H :3 % J :5 % |
AWG Number | Exp : 400 400: 400 mm |
