VNA
Type E2

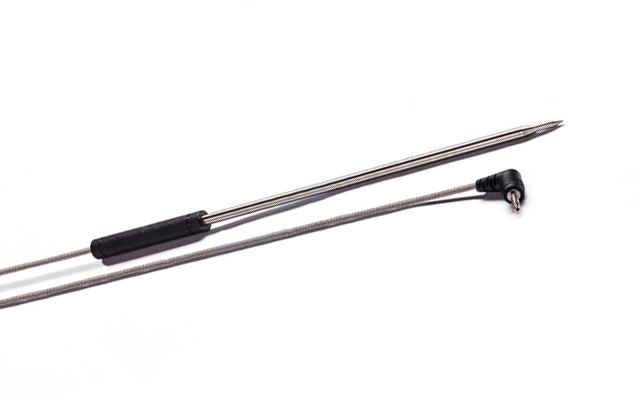

Description： This temperature sensor adopts NTC glass sealed thermistor, PT100/1000, with heat resistance and good stability.
Features： 1. Material: SUS304 stainless steel probe / knurled aluminum handle (oxidized color) / two-stage audio headphone head steel mesh cable 380℃ /The high temperature steel mesh wire effectively increases the pulling damage of the product and increases the product life.
2. This product uses SUS316 (acceptable customized specifications) stainless steel reducing tip tube, which makes the tip part smaller and can be used smaller components effectively increase the temperature measurement speed.
3. The front end of the shell adopts a depressurization treatment to make the probe part penetrate better, and the knurled aluminum handle is anti-flowering to prevent the hand from slipping and falling off when the customer uses it by hand.
4. Application: Suitable for industrial instruments, teaching instruments, food temperature measurement, medical and drug reaction kettles, etc.
◆Characteristics
Working temperature range: -50 to 300°C
Thermal time constant: Approximately. 5 seconds (in warm water)
Withstand voltage: AC1800V/3S without breakdown or flicker (cut-off current 1mA)
Insulation resistance: DC 500V resistance 100mΩ or more (between component and lead)
◆Order Map
| VNA | - E2 | - 102 | □ - | □□ | □□□ | - □□ |
| Series Code | Type | Res. Value | Res. Tolerance | Wire Gauge | Length | Connector |
| VNA | E2 | at 0℃ / 25℃ 102 x 1000 Ω |
A : 0.06 % B : 0.12 % F :1% H :3 % J :5 % |
AWG Number | Exp : 400 400: 400 mm |
