VON
Type Q2

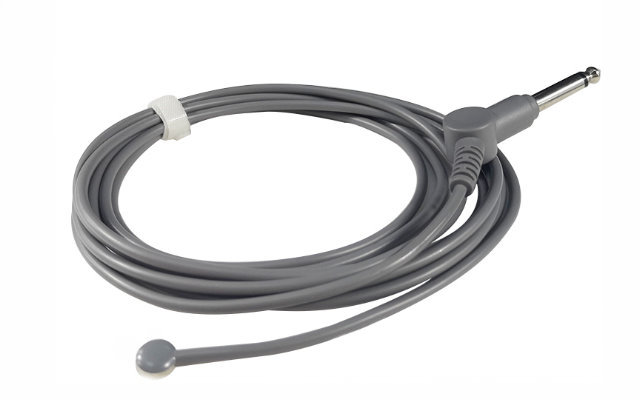

Description： This temperature sensor adopts NTC (epoxy sealed, glass sealed thermistor) with heat resistance and good stability.
Features： 1. Material: The metal disc design conforms to the human body temperature measurement design/medical special sheath line.
2. The minimum temperature difference of high-precision medical chips can reach ±0.01 degrees Celsius.
3. The inner black epoxy resin encapsulation structure, all materials are in line with medical environmental protection.
4. Application: Human skin temperature detection.
◆Characteristics
Working temperature range: -30 to 105°C
Thermal time constant: Approximately. 5 seconds (in warm water)
Withstand voltage: AC1800V/3S without breakdown or flicker (cut-off current 1mA)
Insulation resistance: DC 500V resistance 100mΩ or more (between component and lead)
◆Order Map
| VON | - Q2 | - 102 | □ - | □□ | □□□ | - □□ |
| Series Code | Type | Res. Value | Res. Tolerance | Wire Gauge | Length | Connector |
| VON | Q2 | at 25℃ 102 x 1000 Ω |
F :1% H :3 % J :5 % |
AWG Number | Exp : 400 400: 400 mm |
