VNA
Type W2

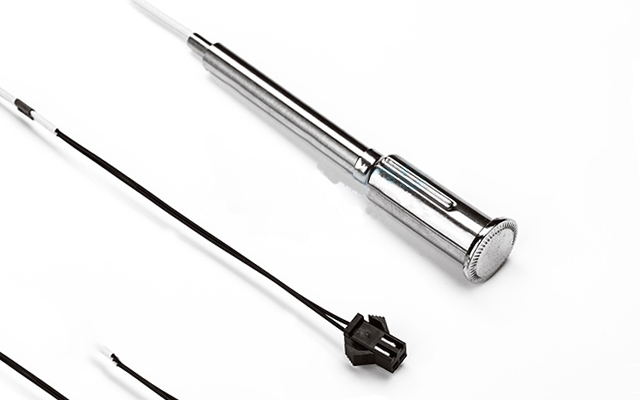

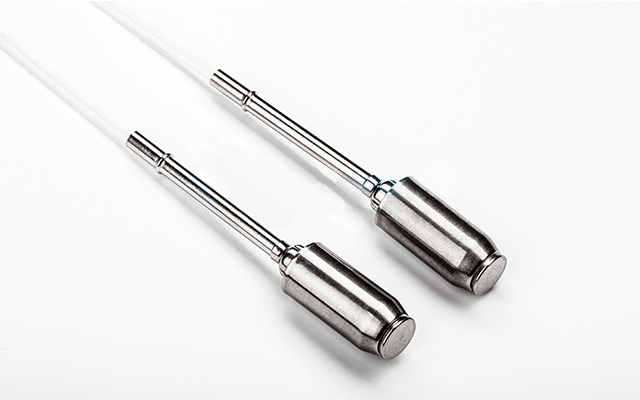

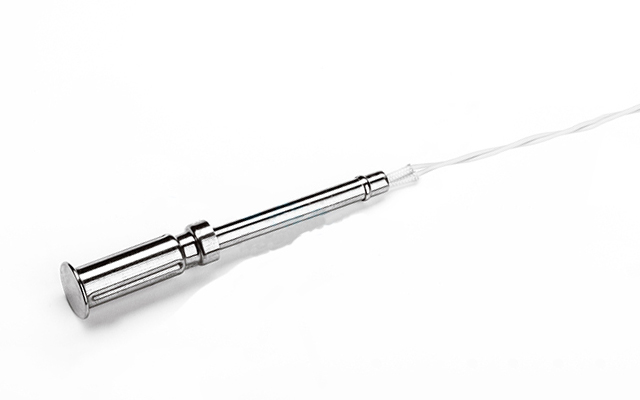

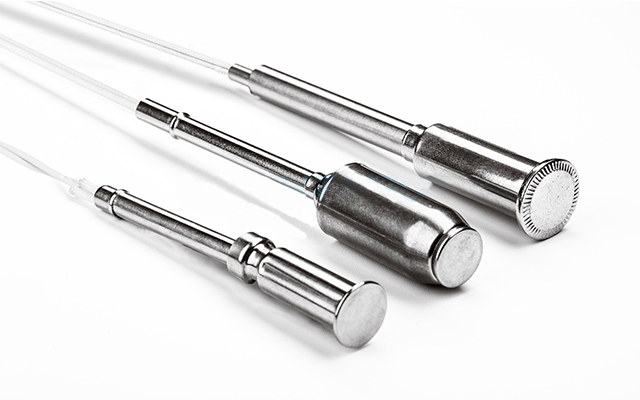

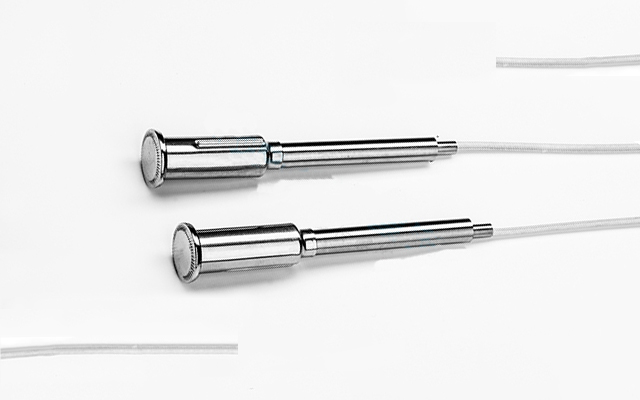

Description： This temperature sensor adopts NTC single-ended glass-sealed thermistor with heat resistance and good stability.
Features： 1. SUSU304 stainless steel housing is crimped/fixed with high temperature Teflon wire and glass fiber sheath. (Customized specifications are acceptable)
2. The shell is crimped and fixed, with strong tensile resistance, high pressure resistance and accurate temperature measurement, so it has heat resistance and higher stability.
3. Flat temperature measurement, stable temperature measurement, easy installation the tail quick connector is suitable for more occasions, convenient and fast.
4. Application: Gas stove anti-dry burning control temperature induction.
◆Characteristics
Working temperature range: -30 to 300°C
Thermal time constant: Approximately. 5 seconds (in warm water)
Withstand voltage: AC1800V/3S without breakdown or flicker (cut-off current 1mA)
Insulation resistance: DC 500V resistance 100mΩ or more (between component and lead)
◆Order Map
| VNA | - W2 | - 102 | □ - | □□ | □□□ | - □□ |
| Series Code | Type | Res. Value | Res. Tolerance | Wire Gauge | Length | Connector |
| VNA | W2 | at 25℃ 102 x 1000 Ω |
F :1% H :3 % J :5 % |
AWG Number | Exp : 400 400: 400 mm |
