VSC
Type H2
Description： This temperature sensor adopts NTC single-ended glass-sealed
thermistor with heat resistance and good stability.

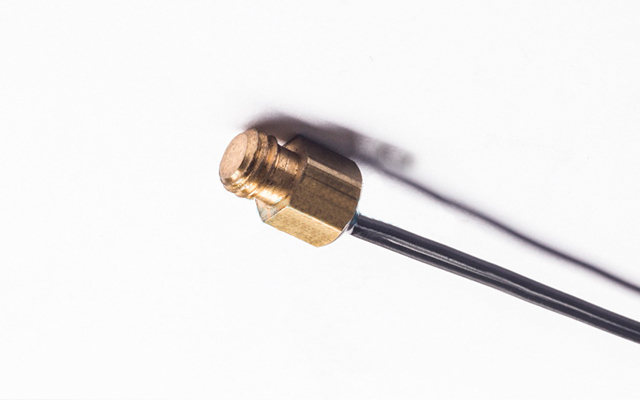

Features： 1. Material: Copper nut housing/jacketed wire. (Customized specifications are acceptable)
2. The front end of the shell is designed with thread, small diameter, easy to use, accurate temperature measurement, so it has heat resistance and higher stability.
3. The temperature sensor is encapsulated and crimped with epoxy resin, and the screw type is waterproof and has good waterproofness.
4. Application: Home appliance temperature control.
◆Characteristics
Working temperature range: -40 to 125°C
Thermal time constant: Approximately. 5 seconds (in warm water)
Withstand voltage: AC1800V/3S without breakdown or flicker (cut-off current 1mA)
Insulation resistance: DC 500V resistance 100mΩ or more (between component and lead)
◆Order Map
| VSC | - H2 | - 102 | □ - | □□ | □□□ | - □□ |
| Series Code | Type | Res. Value | Res. Tolerance | Wire Gauge | Length | Connector |
| VSC | H2 | at 0℃ / 25℃ 102 x 1000 Ω |
F :1% H :3 % J :5 % |
AWG Number | Exp : 400 400: 400 mm |
