VNA
Type V1

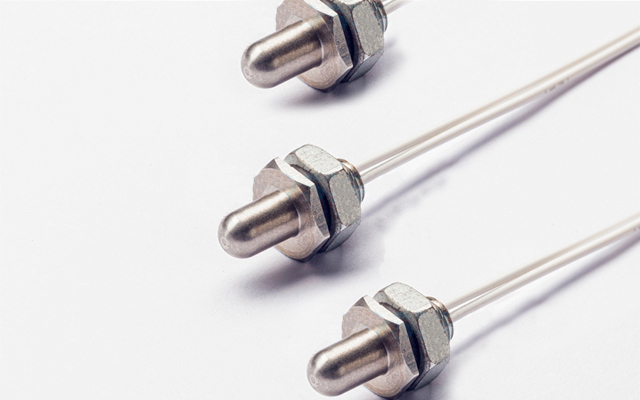

Description： This temperature sensor adopts NTC (diode, epoxy sealed, glass sealed thermistor… etc.) linear PTC Thermistor, PT100/1000,
thermocouple element, with heat resistance and good stability.
Features： 1. Material: SUS304 stainless steel hexagon nut shell, high temperature Teflon wire. (Customized specifications are acceptable).
2. With waterproof rubber ring design, small diameter, easy to use, accurate temperature measurement.
3. The temperature sensor is encapsulated and crimped with epoxy resin, and the screw type is waterproof and has good waterproofness.
4. Application: Coffee machine/water heater/home appliance, temperature control temperature sensor.
◆Characteristics
Working temperature range: -40 to 125°C
Thermal time constant: Approximately. 5 seconds (in warm water)
Withstand voltage: AC1800V/3S without breakdown or flicker (cut-off current 1mA)
Insulation resistance: DC 500V resistance 100mΩ or more (between component and lead)
◆Order Map
| VNA | - V1 | - 102 | □ - | □□ | □□□ | - □□ |
| Series Code | Type | Res. Value | Res. Tolerance | Wire Gauge | Length | Connector |
| VNA | V1 | at 0℃ / 25℃ 102 x 1000 Ω |
A : 0.06 % B : 0.12 % F :1% H :3 % J :5 % |
AWG Number | Exp : 400 400: 400 mm |
