VCP
Type F1
Description： This temperature sensor adopts NTC glass-sealed thermistor, which has heat resistance and good stability.

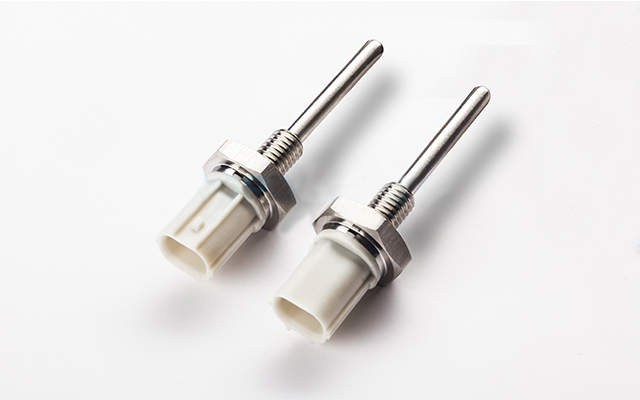

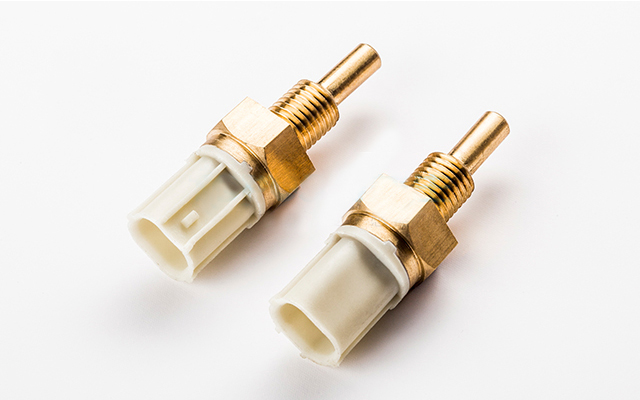

Features： 1. Material: Copper nut shell / SUS304 stainless steel shell, high temperature injection mold.
2. The front end of the shell is designed with thread, small diameter, easy to use, accurate temperature measurement, so it has heat resistance and higher stability.
3. High-temperature glass-sealed thermistor and high-temperature injection mold are packaged by ultrasonic welding, with fast response speed and good water resistance.
4. Material, length, size, wafer, heat resistance can be customized, engine temperature sensor, high temperature resistance, fast response speed and high precision good stability.
5. Application: Engine temperature sensor/motor temperature detection.
◆Characteristics
Working temperature range: -30 to 200°C
Thermal time constant: Approximately. 5 seconds (in warm water)
Withstand voltage: AC1800V/3S without breakdown or flicker (cut-off current 1mA)
Insulation resistance: DC 500V resistance 100mΩ or more (between component and lead)
◆Order Map
| VCP | - F1 | - 102 | □ - | □□ | □□□ | - □□ |
| Series Code | Type | Res. Value | Res. Tolerance | Wire Gauge | Length | Connector |
| VCP | F1 | at 25℃ 102 x 1000 Ω |
F :1% H :3 % J :5 % |
AWG Number | Exp : 400 400: 400 mm |
