VTS
Type V1

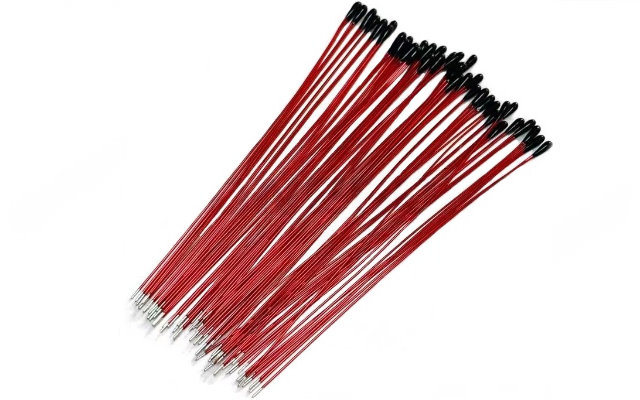

Description： This temperature sensor uses a high-precision NTC thermistor chip with good stability.
Features： 1. Material: Epoxy / Enameled Wire.
2. The minimum temperature difference of high-precision medical chips can reach ±0.01 degrees Celsius.
3. Using high stability thermistor chip, fast response, stable use.
4. Application: Battery pack/medical Temperature Sensor.
◆Characteristics
Working temperature range: -30 to 105°C
Thermal time constant: Approximately. 5 seconds (in warm water)
Withstand voltage: AC1800V/3S without breakdown or flicker (cut-off current 1mA)
Insulation resistance: DC 500V resistance 100mΩ or more (between component and lead)
◆Order Map
| VTS | - V1 | - 102 | □ - | □□ | □□□ | - □□ |
| Series Code | Type | Res. Value | Res. Tolerance | Wire Gauge | Length | Connector |
| VTS | V1 | at 25℃ 102 x 1000 Ω |
F :1% H :3 % J :5 % |
AWG Number | Exp : 400 400: 400 mm |
