VON

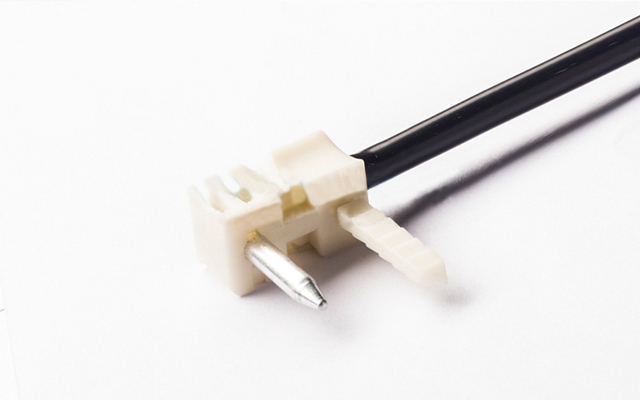

Type N1
Description： This temperature sensor uses NTC (epoxy resin sealed, glass sealed thermistor .. etc.), linear PTC thermistor, has heat resistance and good stability.
Features： 1. Material: Aluminum nut injection molded ABS shell. (Customized specifications are acceptable)
2. Plastic shell design at the front of the shell, small diameter, easy to use, accurate temperature measurement, so it has heat resistance and higher stability.
3. The temperature sensor is encapsulated by epoxy resin and fixed by crimping, screw type waterproof, good waterproof.
4. Application: Automobile Temperature Sensor.
◆Characteristics
Working temperature range: -40 to 150°C
Thermal time constant: Approximately. 5 seconds (in warm water)
Withstand voltage: AC1800V/3S without breakdown or flicker (cut-off current 1mA)
Insulation resistance: DC 500V resistance 100mΩ or more (between component and lead)
◆Order Map
| VON | - N1 | - 102 | □ - | □□ | □□□ | - □□ |
| Series Code | Type | Res. Value | Res. Tolerance | Wire Gauge | Length | Connector |
| VON | N1 | at 25℃ 102 x 1000 Ω |
F :1% H :3 % J :5 % |
AWG Number | Exp : 400 400: 400 mm |
