VSC
Type R6
Description： This temperature sensor uses NTC (epoxy resin sealed, glass sealed thermistor .. etc.)
Linear PTC Thermistor, PT100/1000, and thermocouple components have heat resistance and good stability.
Features： 1. Material: SUS304 stainless steel casing, Teflon wire/glass fiber sheathed casing. (Customized specifications are acceptable)

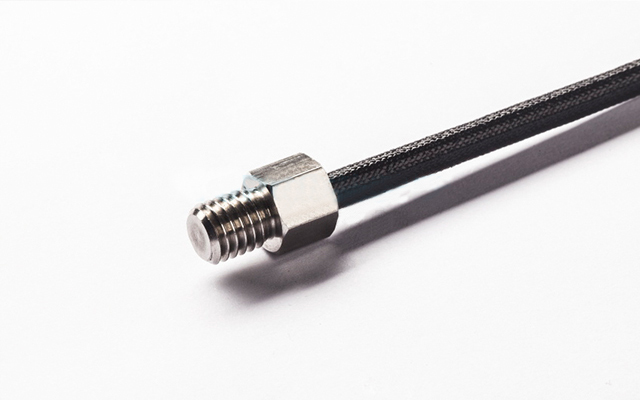

2. The front end of the shell has a threaded design, small diameter, easy to use, accurate temperature measurement, so it has heat resistance and higher stability.
3. The temperature sensor is encapsulated by epoxy resin and fixed by crimping, screw type waterproof, good waterproof.
4. Application: Automobile water tank temperature detection sensor.
◆Characteristics
Working temperature range: -40 to 150°C
Thermal time constant: Approximately. 5 seconds (in warm water)
Withstand voltage: AC1800V/3S without breakdown or flicker (cut-off current 1mA)
Insulation resistance: DC 500V resistance 100mΩ or more (between component and lead)
◆Order Map
| VSC | - R6 | - 102 | □ - | □□ | □□□ | - □□ |
| Series Code | Type | Res. Value | Res. Tolerance | Wire Gauge | Length | Connector |
| VSC | R6 | at 0℃ / 25℃ 102 x 1000 Ω |
A : 0.06 % B : 0.12 % F :1% H :3 % J :5 % |
AWG Number | Exp : 400 400: 400 mm |
