VNA
Type H3

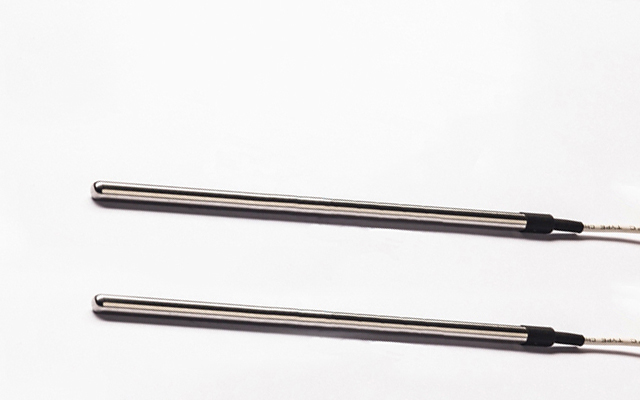

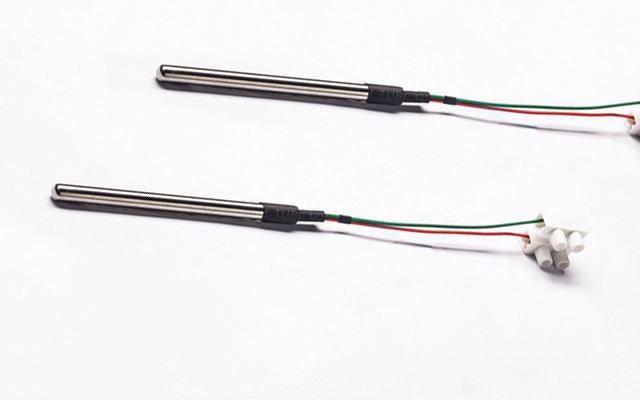

Description： This temperature sensor can use NTC glass thermistor, with good stability.
Features： 1. Material: SUS304 stainless steel shell/high temperature Teflon wire.
2. All products use high-temperature materials and designs, which can be used in high-temperature environments for a long time.
3. The shell is fixed by epoxy resin, black heat shrinkable sealing, good waterproof, high pressure resistance.
4. The tail quick connector is suitable for more occasions, convenient and fast.
5. Application: HVAC, air purifier, central air conditioning.
◆Characteristics
Operating temperature range: -40-200℃ (products can be customized)
Thermal time constant: approx. 5 seconds (in warm water)
Withstand voltage: AC1800V/3S without breakdown or flicker (cut-off current 1mA)
Insulation resistance: DC 500V resistance 100mΩ or more (between component and lead)
◆Order Map
| VNA | - H3 | - 102 | □ - | □□ | □□□ | - □□ |
| Series Code | Type | Res. Value | Res. Tolerance | Wire Gauge | Length | Connector |
| VNA | H3 | at 25℃ 102 x 1000 Ω |
F :1% H :3 % J :5 % |
AWG Number | Exp : 400 400: 400 mm |
