VON
Type L1

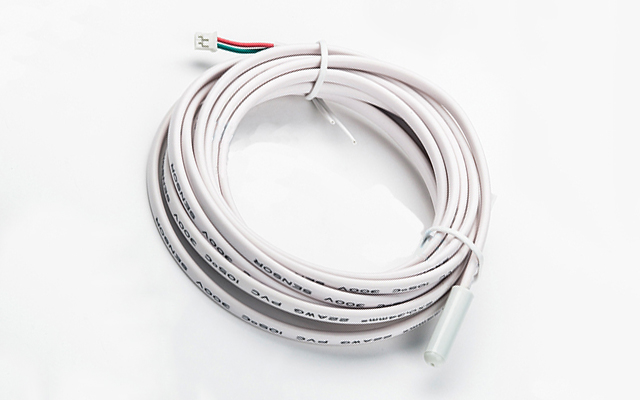

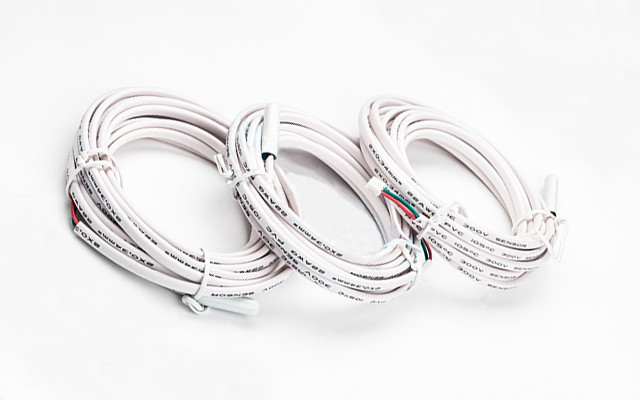

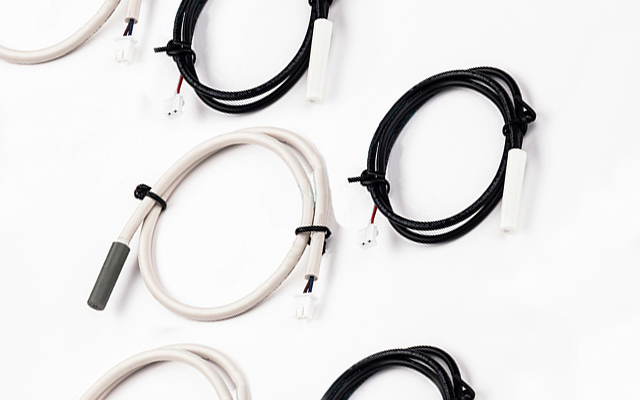

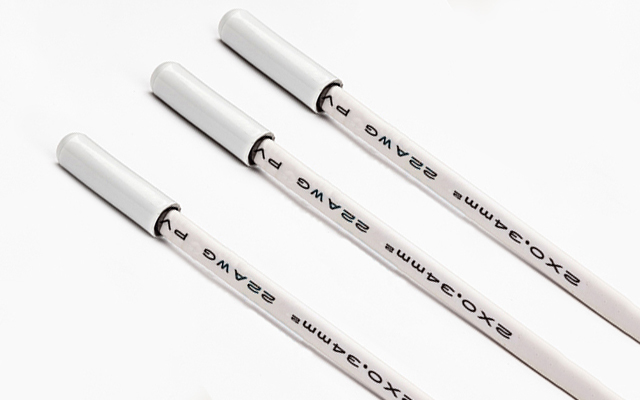

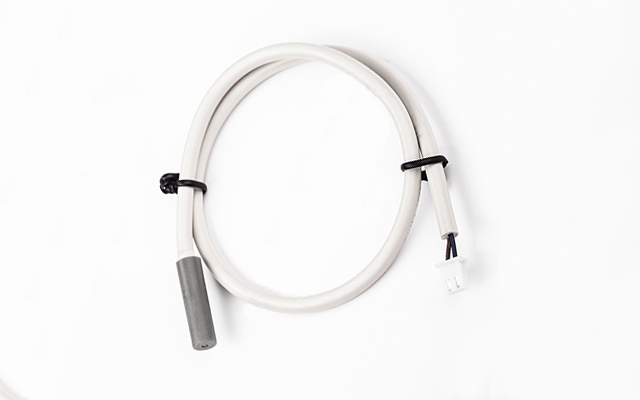

Description： This temperature sensor can use NTC glass thermistor, with good stability.
Features： 1. Material: ABS nylon shell/sheathed wire.
2. Small size, sturdy structure, easy to install automatically, heat induction and high sensitivity.
3. The shell is fixed with ABS nylon shell and epoxy resin, black heat shrinkable sealing, good waterproof, high-pressure resistance.
4. The glass-encapsulated thermistor can be used in harsh conditions such as high temperature and humidity, with good stability and high reliability.
5. Application: HVAC temperature sensor.
◆Characteristics
Operating temperature range: -30-125℃ (products can be customized)
Thermal time constant: approx. 5 seconds (in warm water)
Withstand voltage: AC1800V/3S without breakdown or flicker (cut-off current 1mA)
Insulation resistance: DC 500V resistance 100mΩ or more (between component and lead)
◆Order Map
| VON | - L1 | - 102 | □ - | □□ | □□□ | - □□ |
| Series Code | Type | Res. Value | Res. Tolerance | Wire Gauge | Length | Connector |
| VON | L1 | at 25℃ 102 x 1000 Ω |
F :1% H :3 % J :5 % |
AWG Number | Exp : 400 400: 400 mm |
