VNA
Type H1

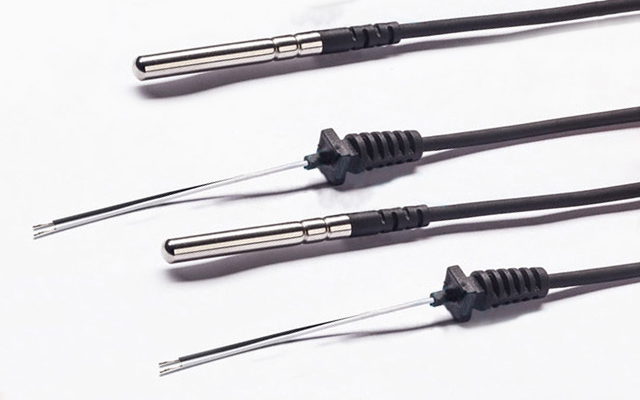

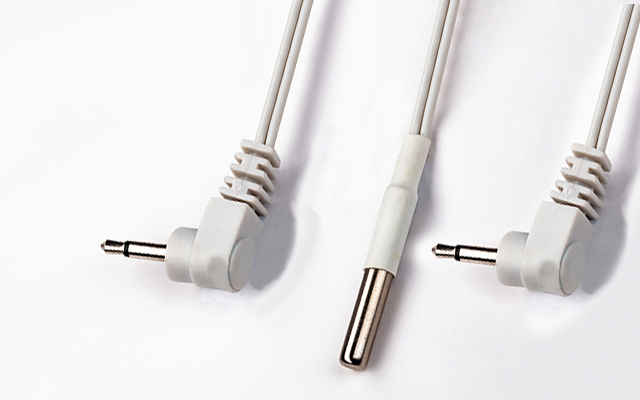

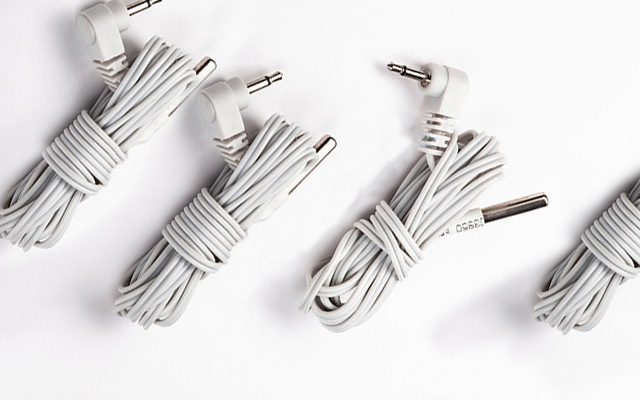

Description： This temperature sensor can use NTC epoxy resin, diode, single-ended glass thermistor, with good stability.
Features： 1. Material: SUS304 stainless steel shell, TPE high temperature sheathed wire.
2. TPE high temperature cable and TPE high temperature glue injection molding have good fusion and the waterproofness reaches IP67 standard.
3. Wire size can be customized according to customers, plus stainless steel SUS304 shell.
4. Corrosion resistance/waterproof treatment/pressure resistance.
5. Application: Pet box, aquarium, air purifier.
◆Characteristics
Operating temperature range: -40-150℃ (products can be customized)
Thermal time constant: approx. 5 seconds (in warm water)
Withstand voltage: AC1800V/3S without breakdown or flicker (cut-off current 1mA)
Insulation resistance: DC 500V resistance 100mΩ or more (between component and lead)
◆Order Map
| VNA | - H1 | - 102 | □ - | □□ | □□□ | - □□ |
| Series Code | Type | Res. Value | Res. Tolerance | Wire Gauge | Length | Connector |
| VNA | H1 | at 25℃ 102 x 1000 Ω |
F :1% H :3 % J :5 % |
AWG Number | Exp : 400 400: 400 mm |
