VON
Type B1

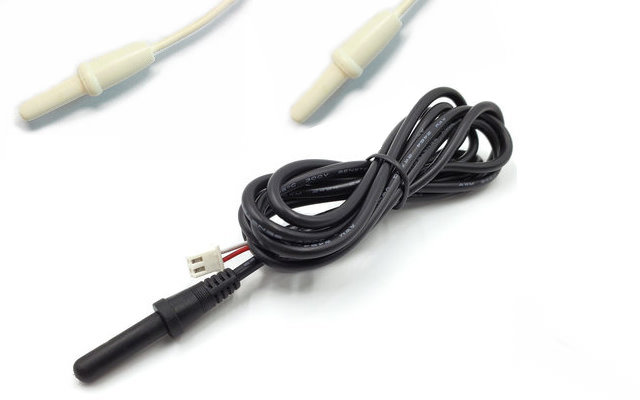

Description： This temperature sensor can use NTC epoxy resin, diode, single-ended glass thermistor, with good stability.
Features： 1. Material: ABS plastic injection molding housing, PVC sheathed wire.
2. The PVC outer wire has good fusion with PVC high-temperature plastic injection molding and the waterproofness reaches the IP67 standard.
3. Wire size or can be customized according to customers.
4. Corrosion resistance/waterproof treatment/pressure resistance.
5. Application: Aquarium cabinets, pet boxes, air purifiers.
◆Characteristics
Operating temperature range: -40-125℃ (products can be customized)
Thermal time constant: approx. 5 seconds (in warm water)
Withstand voltage: AC1800V/3S without breakdown or flicker (cut-off current 1mA)
Insulation resistance: DC 500V resistance 100mΩ or more (between component and lead)
◆Order Map
| VON | - B1 | - 102 | □ - | □□ | □□□ | - □□ |
| Series Code | Type | Res. Value | Res. Tolerance | Wire Gauge | Length | Connector |
| VON | B1 | at 25℃ 102 x 1000 Ω |
F :1% H :3 % J :5 % |
AWG Number | Exp : 400 400: 400 mm |
