VRK
Type A1

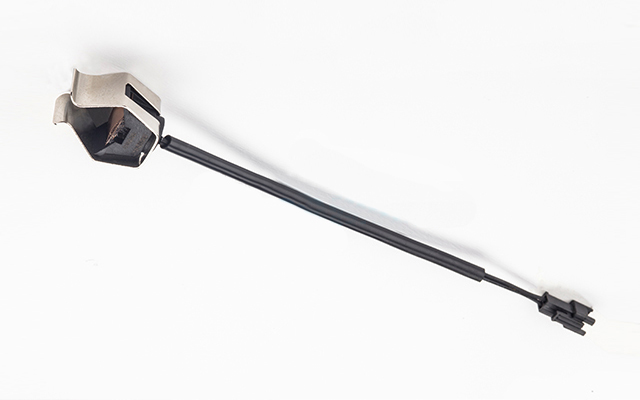

Description： This NTC temperature sensor uses NTC glass-sealed thermistor, PT100/1000, and good stability.

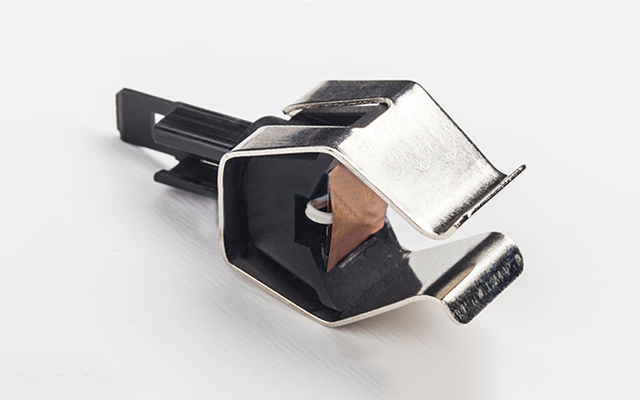

Features： 1. Material: SUS304 pipe clamp / PVC wire.
2. High temperature thermistor, high temperature resistance, accurate temperature measurement,
sensitive response, close to the surface temperature measurement, stable temperature measurement, easy installation.
3. The temperature sensor is encapsulated by epoxy resin and fixed by crimping. It has strong tensile strength, high pressure resistance, spiral waterproofness, and good waterproofness.
4. The quick-connect terminal at the tail is suitable for more occasions, convenient and fast.

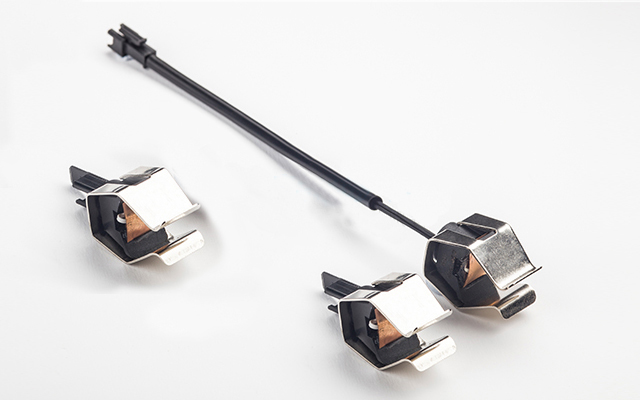

the existing size of the pipe clamp is 18#/12#, it can also be customized according to customer requirements.
5. Application: Used for wall-hung boiler, water pipe temperature test.
◆Characteristics
Operating temperature range: -40-150℃ (products can be customized)
Thermal time constant: approx. 5 seconds (in warm water)
Withstand voltage: AC1800V/3S without breakdown or flicker (cut-off current 1mA)
Insulation resistance: DC 500V resistance 100mΩ or more (between component and lead)
◆Order Map
| VRK | - A1 | - 102 | □ - | □□ | □□□ | - □□ |
| Series Code | Type | Res. Value | Res. Tolerance | Wire Gauge | Length | Connector |
| VRK | A1 | at 0℃ / 25℃ 102 x 1000 Ω |
A : 0.06 % |
AWG Number | Exp : 400 400: 400 mm |
