VNA
Type C1

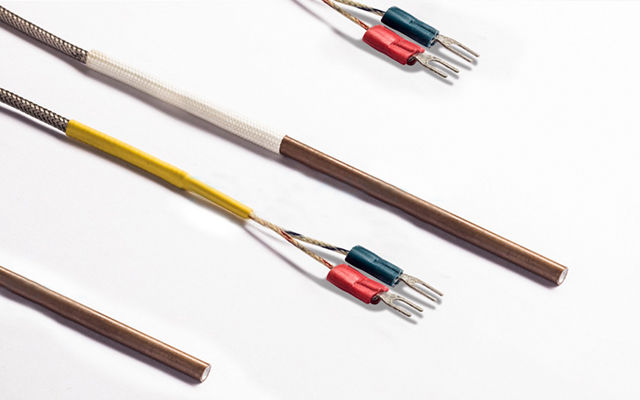

Description： This temperature sensor adopts thermocouple components, which has heat resistance and good stability.
Features： 1. Material: Copper tube shell/K-type thermocouple shield steel mesh wire.
2. This product adopts high temperature resistant K-type thermocouple, high temperature resistant, high stability, fast sensitivity.
3. The front end of the shell is easy to handle with high temperature resistant spring handle,the length, diameter and appearance of the shell can be customized according to customer requirements.
4. The use of thermocouples to shield the steel mesh cable effectively increases the pull and damage of the product, increases the product life, and can accept customized specifications.
5. Application: instruments and meters.
◆Characteristics
Working temperature range: -40 to 500°C
Thermal time constant: Approximately. 5 seconds (in warm water)
Withstand voltage: AC1800V/3S without breakdown or flicker (cut-off current 1mA)
Insulation resistance: DC 500V resistance 100mΩ or more (between component and lead)
◆Order Map
| VNA | - C1 | - 102 | □ - | □□ | □□□ | - □□ |
| Series Code | Type | Res. Value | Res. Tolerance | Wire Gauge | Length | Connector |
| VNA | C1 | at 25℃ 102 x 1000 Ω |
F :1% |
AWG Number | Exp : 400 400: 400 mm |
