VBQ
Type V2
Description： This temperature sensor uses NTC (epoxy resin sealed, glass sealed thermistor …etc.)
Linear PTC Thermistor, PT100/1000, and thermocouple components have heat resistance and good stability.
Features： 1. Material: SUS316 (customized specifications are acceptable) food grade stainless steel housing, in line with food grade standards.

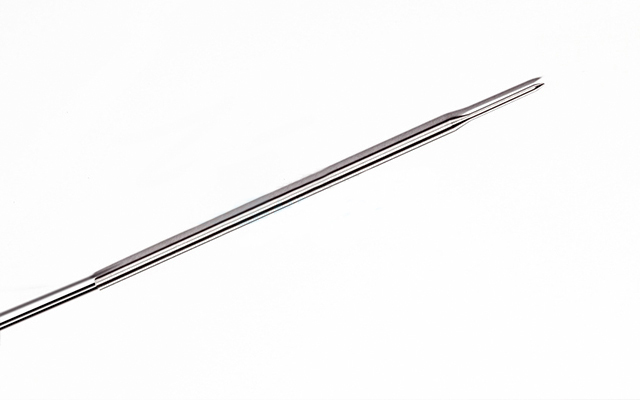

2. This product uses SUS316 (acceptable customized specifications) stainless steel reducing tip tube, which makes the tip part smaller,
and can use smaller components to effectively improve the temperature measurement speed and have higher stability.
3. The front end of the housing adopts a depressurization treatment to make the probe part penetrate better.
4. The use of high-temperature Teflon wire effectively increases the pulling damage of the product and prolongs the product life, and can accept customized specifications.
5. Application: Suitable for instrumentation, food temperature measurement etc ….
◆Characteristics
Working temperature range: -40 to 300°C
Thermal time constant: Approximately. 5 seconds (in warm water)
Withstand voltage: AC1800V/3S without breakdown or flicker (cut-off current 1mA)
Insulation resistance: DC 500V resistance 100mΩ or more (between component and lead)
◆Order Map
| VBQ | - V2 | - 102 | □ - | □□ | □□□ | - □□ |
| Series Code | Type | Res. Value | Res. Tolerance | Wire Gauge | Length | Connector |
| VBQ | V2 | at 0℃ / 25℃ 102 x 1000 Ω |
A : 0.06 % B : 0.12 % F :1% H :3 % J :5 % |
AWG Number | Exp : 400 400: 400 mm |
