VTA
Type A1

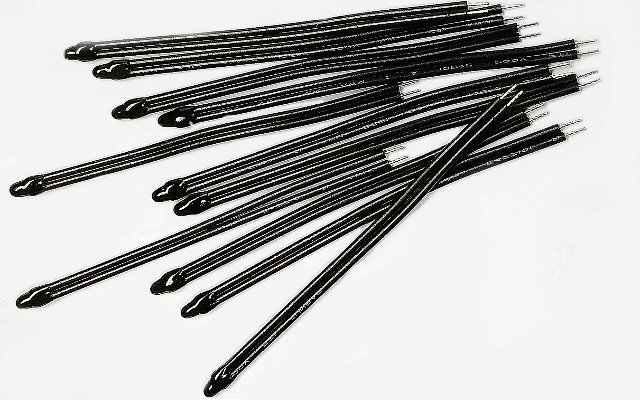

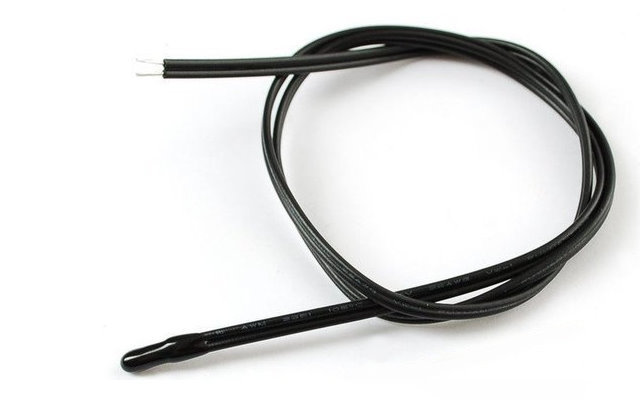

Description： This temperature sensor, NTC single-ended glass-sealed resistance/PT100/1000 platinum resistance (can be customized), has good stability.
Features： 1. Material: Epoxy/sheathed wire.
2. High breakdown voltage, small size, fast response, strong moisture resistance and good weather resistance.
3. Installed in the battery pack for battery temperature detection.
4. Temperature sensor of battery body, output signal: analog signal output.
5. Application: new energy vehicle energy storage, battery pack.
◆Characteristics
Working temperature range: -30 to 125°C
Thermal time constant: Approximately. 5 seconds (in warm water)
Withstand voltage: AC1800V/3S without breakdown or flicker (cut-off current 1mA)
Insulation resistance: DC 500V resistance 100mΩ or more (between component and lead)
◆Order Map
| VTA | - A1 | - 102 | □ - | □□ | □□□ | - □□ |
| Series Code | Type | Res. value | Res. Tolerance | Wire Gauge | Length | Connector |
| VTA | A1 | at 25℃ 102 x 1000 Ω |
F :1% |
AWG Number | Exp : 400 400: 400 mm |
