VSC
Type A1

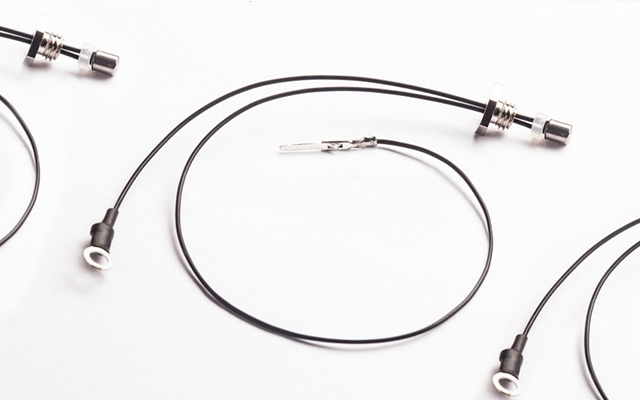

Description： This temperature sensor adopts NTC epoxy resin, diode, single-ended glass thermistor, with good stability.
Features： 1. Material: SUSU304 stainless steel/copper nickel plated/copper 59 threaded probe.
2. The front end of the shell has a threaded design, with a small diameter, easy to use and accurate temperature measurement.
3. Using high temperature resistant, high stability components, fast response, stable use and long-term use in high temperature environments.
4. There are a variety of custom sizes, a wide range of installation applications, convenient and fast installation, and custom specifications are acceptable.
5. Moisture resistance can be customized according to customer requirements, waterproof treatment/pressure resistant products are all high-temperature materials and designs.
◆Characteristics
Operating temperature range: -40-125℃ (products can be customized)
Thermal time constant: approx. 5 seconds (in warm water)
Withstand voltage: AC1800V/3S without breakdown or flicker (cut-off current 1mA)
Insulation resistance: DC 500V resistance 100mΩ or more (between component and lead)
◆Order Map
| VSC | - A1 | - 103 | □ - | □□ | □□□ | - □□ |
| Series Code | Type | Res. Value | Res. Tolerance | Wire Gauge | Length | Connector |
| VSC | A1 | at 25℃ 103 x 10000 Ω |
A : 0.06 % B : 0.12 % F :1% H :3 % J :5 % |
AWG Number | Exp : 400 400: 400 mm |
