VHO
Type T5

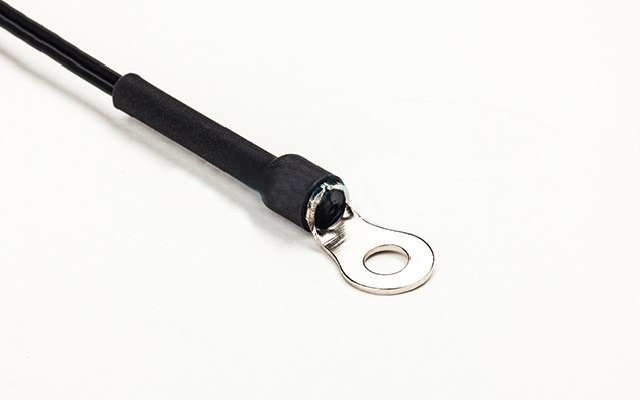

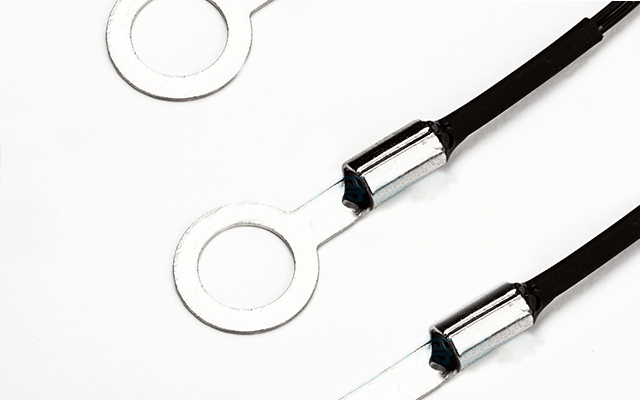

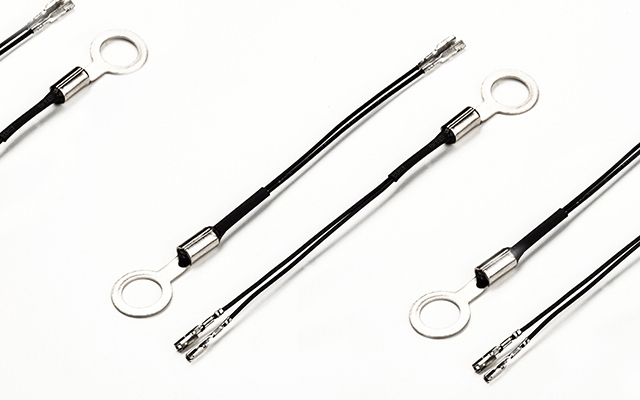

Description： This temperature sensor is sealed with NTC epoxy resin / linear PTC thermistor, it has a good the stability.
Features： 1. Material: SUSU304 stainless steel/nickel-plated copper/aluminum terminal.
2. The surface is flat-mounted temperature sensing, the sensing speed is fast, and the temperature measurement is faster/accurate.
3. The installation is convenient and fast, and custom specifications are acceptable.
4. Moisture resistance can be customized according to customer requirements for waterproof treatment/pressure resistance.
5. Application: Induction cooker, special temperature sensor for temperature measurement on the surface of mechanical equipment.
◆Characteristics
Operating temperature range: -40-125℃ (products can be customized)
Thermal time constant: approx. 5 seconds (in warm water)
Withstand voltage: AC1800V/3S without breakdown or flicker (cut-off current 1mA)
Insulation resistance: DC 500V resistance 100mΩ or more (between component and lead)
◆Order Map
| VHO | - T5 | - 102 | □ - | □□ | □□□ | - □□ |
| Series Code | Type | Res. Value | Res. Tolerance | Wire Gauge | Length | Connector |
| VHO | T5 | at 25℃ 102 x 1000 Ω |
F :1% H :3 % J :5 % |
AWG Number | Exp : 400 400: 400 mm |
