VSC
Type P2

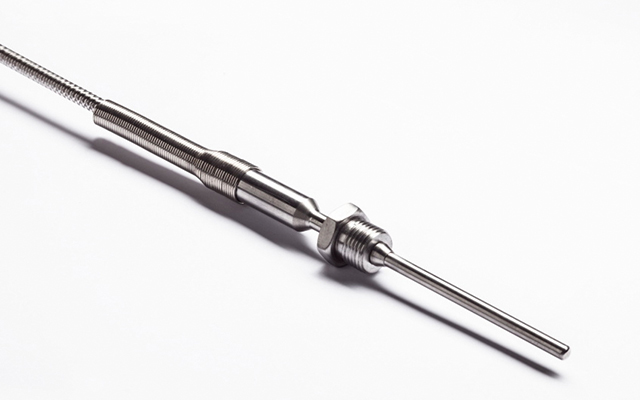

Description： This temperature sensor uses a high-temperature K-type thermocouple,
which has high temperature resistance and high stability,and is sensitive.
(The use temperature range can be customized according to customers.)
Features： 1. Material: SUS304 stainless steel probe/SUS304 stainless steel spring handle, K-type thermocouple shielded steel wire.
2. SUS304 stainless steel spring handle is good to protect the abrasion between the wire and the handle.
3. The length, diameter, and appearance of the outer shell can be customized according to customer requirements.
4. Application: Valve pipeline / exhaust emission detection temperature detection.
◆Characteristics
Operating temperature range: -40-500℃(products can be customized)
Thermal time constant: approx. 5 seconds (in warm water)
Withstand voltage: AC1800V/3S without breakdown or flicker (cut-off current 1mA)
Insulation resistance: DC 500V resistance 100mΩ or more (between component and lead)
◆Order Map
| VSC | - P2 | - 102 | □ - | □□ | □□□ | - □□ |
| Series Code | Type | Res. Value | Res. Tolerance | Wire Gauge | Length | Connector |
| VSC | P2 | at 25℃ 102 x 1000 Ω |
AWG Number | Exp : 400 400: 400 mm |
