VNA
Type B1

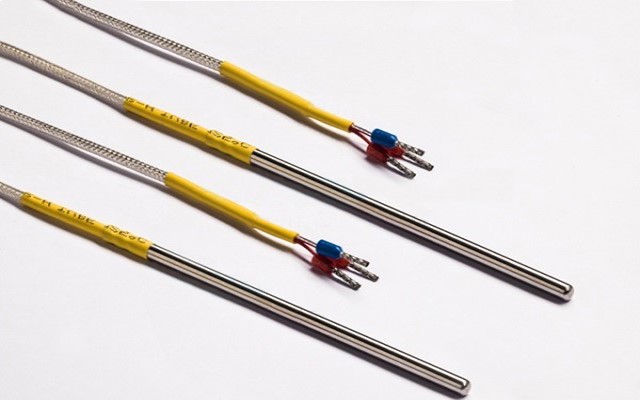

Description： This temperature sensor uses NTC (epoxy resin sealed, glass sealed thermistor. etc.)
Linear PTC Thermistor, PT100/1000, and thermocouple components have heat resistance
and good stability.
Features： 1. Material: SUS304 stainless steel housing/three-core silver-plated mask wire.
(Customized specifications are acceptable)
2. The shell diameter is small, easy to use and accurate temperature measurement, so it has
heat resistance and higher stability.
3. The temperature sensor is encapsulated by epoxy resin and fixed by crimping, screw type
waterproof, good waterproof.
4. Application: Suitable for automobile/industrial equipment, etc.
◆Characteristics
Working temperature range: -50 to 250°C
Thermal time constant: Approximately. 5 seconds (in warm water)
Withstand voltage: AC1800V/3S without breakdown or flicker (cut-off current 1mA)
Insulation resistance: DC 500V resistance 100mΩ or more (between component and lead)
◆Order Map
| VNA | - B1 | - 102 | □ - | □□ | □□□ | - □□ |
| Series Code | Type | Res. Value | Res. Tolerance | Wire Gauge | Length | Connector |
| VNA | B1 | at 0℃ / 25℃ 102 x 1000 Ω |
A : 0.06 % B : 0.12 % F :1% H :3 % J :5 % |
AWG Number | Exp : 400 400: 400 mm |
