VGT
Type R1

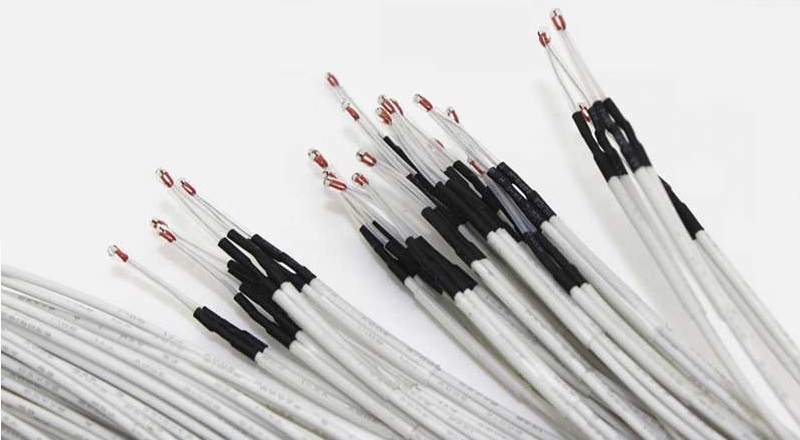

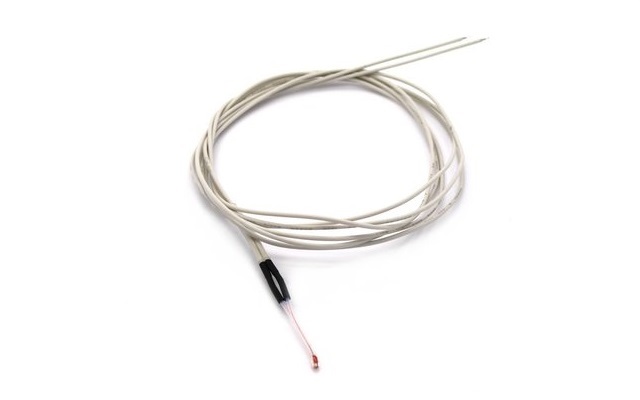

Description： This temperature sensor uses NTC single-ended glass thermistor, which has good stability.
Features： 1. Material: Glass package / high temperature resistant Teflon wire and casing.
2. Has a wide resistance range: 2KΩ to 500KΩ.
3. The temperature sensor is packaged in glass, which can be used in harsh conditions such as high temperature and high humidity, and has good water resistance.
4. Small size, sturdy structure, easy to install automatically, length and appearance can be customized according to customer requirements.
5. Application: Used for temperature detection and temperature compensation of photocopiers, 3D printers … etc.
◆Characteristics
Operating temperature range: -50-300℃ (products can be customized)
Thermal time constant: approx. 5 seconds (in warm water)
Withstand voltage: AC1800V/3S without breakdown or flicker (cut-off current 1mA)
Insulation resistance: DC 500V resistance 100mΩ or more (between component and lead)
◆Order Map
| VGT | - R1 | - 102 | □ - | □□ | □□□ | - □□ |
| Series Code | Type | Res. value | Res. Tolerance | Wire Gauge | Length | Connector |
| VGT | R1 | at 25℃ 102 x 1000 Ω |
F :1% |
AWG Number | Exp : 400 400: 400 mm |
