UPL
Type J4

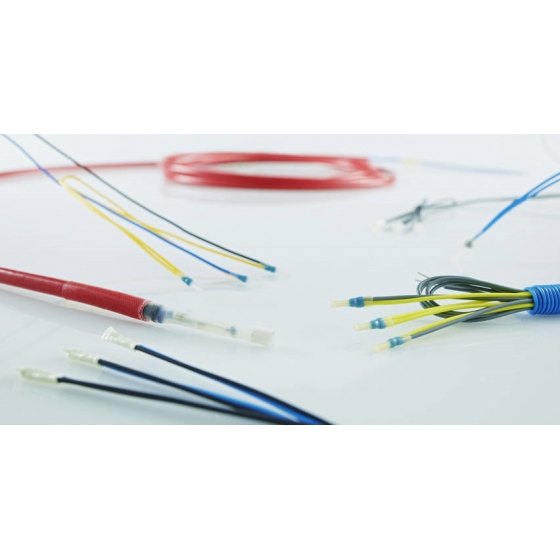

Description： UPL Series PTC thermistors as limit temperature sensors (Motor protection, single sensors)
Features： 1.Thermistor pellet with insulating encapsulation, low-resistance type, steep R/T curve
2.Extremely fast response due to small dimensions, Characteristics for sensing temperatures, RoHS-compatible
◆GENERAL TECHNICAL DATE
| Max, operating voltage (TA = 0,…40℃) Max, operating voltage (TA = -25 Tsense + 23K) Rated resistance (VPTC≦2.5V) Insulating test voltage Thermal threshold time Operating temperature range (V≦ Vmeas/max) Operating temperature range (V=V max) |
V max V meas/max RR Vins ta Tø Tø |
30 7.5 ≦100 2.5 ＜3 -25/Tsense+23 0/+40 |
V DC V DC Ω KV AC s ℃ ℃ |
◆COLOR CODING OF UPL Series Wire’s
| T sense ℃ | Color | T sense ℃ | Color |
| 60 70 80 90 100 110 120 130 |
White/Grey White/Brown White/White Green/Green Red/Red Brown/Brown Grey/Grey Blue/Blue |
140 145 150 155 160 170 180 |
White/Blue White/Black Black/Black Blue/Black Blue//Red White/Green White/Red |
