VVT
Type R2

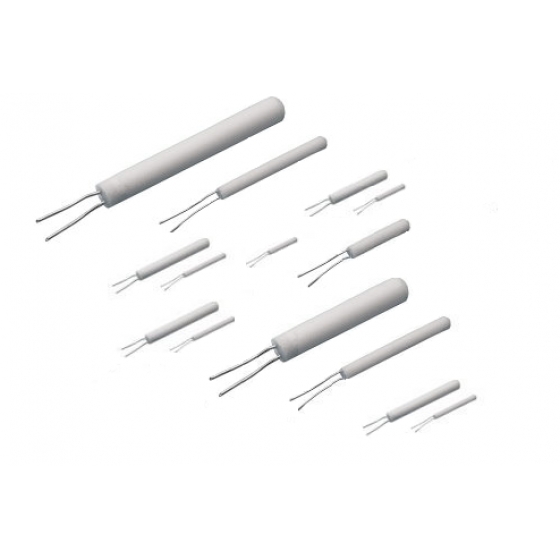

Description： This temperature sensor adopts platinum resistance PT1000/PT250/PT100/PT500, with heat resistance and good stability.
Features： 1.Wide temperature range from -50°C to 550°C.
2.High temperature accuracy Advanced products can be accurate to 0.1°C.
3.Good long-term stability The change in resistance after 1000 hours of operation at 400°C is less than 0.04%.
4.Good product consistency, good interchangeability of products of the same level, and can be freely replaced.
5.Good batch consistency Different batches of products can be interchanged without changing the circuit.
6.Good environmental adaptability Special ceramic structure protection, strong and can withstand various Environments.
◆Characteristics
For use from –200°C to +650°C Dip construction
Suitable for surface & immersion applications where protected
Vibration resistant.
Pt100 Pt250 Pt500 Pt1000 Elements
(100 Ohm/200 Ohm/500 Ohm/1000 Ohm) Thin Film
Pt100 Pt200 Pt 500 Pt 1000 elements to IEC 751 Class A/B
◆Relationship of temperature with Resistance
| When t ＜0°C | When t ＜0°C |
| Rt= R0 (1+At Bt2 ) | Rt= R0 [1+At Bt2+C(t-100) t3] |
| A = 3.9083E-3 | B = 3.9083-03 |
| B = -5.7750E-07 | B = -5.7750E-07 |
| C = -4.1830E-12 | |
| R0= 1.000E+02 |
◆Order Map
| VVT | - R2 |
| Series Code | Type |
| VVT | R2 |
