VNA
Type C2

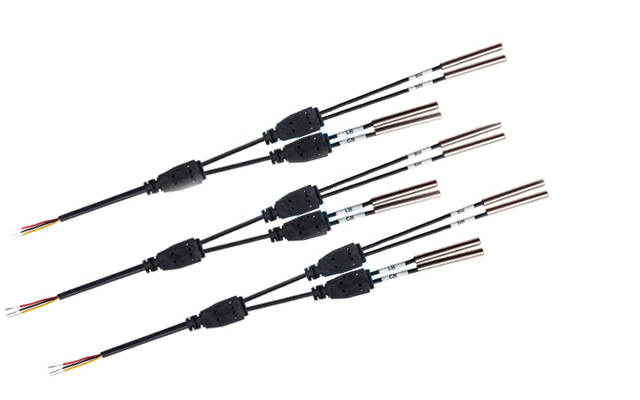

Description： This temperature sensor adopts NTC glass sealed thermistor, PT100/1000, with heat resistance and good stability.
Features： 1. Material: SUS304 stainless steel shell / PVC injection molding envelope shell, sheathed wire.
2. The temperature sensor is encapsulated and crimped with epoxy resin, and the screw type is waterproof and has good waterproofness.
3. Installed in new energy vehicles, used for power battery temperature measurement,
digital temperature sensor, no conversion, direct reading.
4. Application: Electric vehicle energy storage, battery pack.
◆Characteristics
Operating temperature range: -40-150℃ (products can be customized)
Thermal time constant: approx. 5 seconds (in warm water)
Withstand voltage: AC1800V/3S without breakdown or flicker (cut-off current 1mA)
Insulation resistance: DC 500V resistance 100mΩ or more (between component and lead)
◆Order Map
| VNA | - C2 | - 102 | □ - | □□ | □□□ | - □□ |
| Series Code | Type | Res. value | Res. Tolerance | Wire Gauge | Length | Connector |
| VNA | C2 | at 0℃ / 25℃ 102 x 1000 Ω |
A : 0.06 % |
AWG Number | Exp : 400 400: 400 mm |
