VHO
Type T7

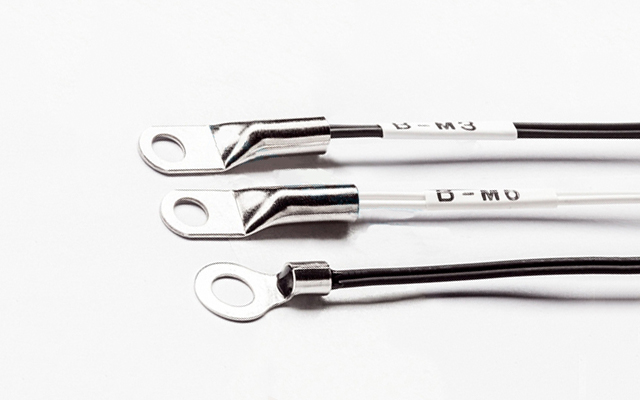

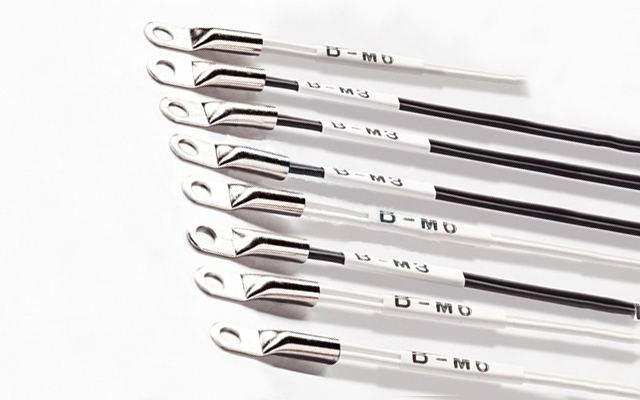

Description： This temperature sensor uses NTC (epoxy resin sealed, glass sealed thermistor ... etc.)
Linear PTC Thermistor, PT100/1000, and thermocouple components have heat resistance and good stability.
Features： 1. Material: Nickel-plated copper mounting holes / high temperature Teflon wire.
2. Has a wide resistance range: 2KΩ to 500KΩ.
3. There are various sizes of holes for customization,
a wide range of installation applications easy and fast installation,
and can accept customized specifications.
4. Nickel-plated copper shell, in line with environmental standards.
5. Application: Electric vehicle energy control system temperature sensor.
◆Characteristics
Operating temperature range: -40-200℃ (products can be customized)
Thermal time constant: approx. 5 seconds (in warm water)
Withstand voltage: AC1800V/3S without breakdown or flicker (cut-off current 1mA)
Insulation resistance: DC 500V resistance 100mΩ or more (between component and lead)
◆Order Map
| VHO | - T7 | - 102 | □ - | □□ | □□□ | - □□ |
| Series Code | Type | Res. value | Res. Tolerance | Wire Gauge | Length | Connector |
| VHO | T7 | at 0℃ / 25℃ 102 x 1000 Ω |
A : 0.06 % |
AWG Number | Exp : 400 400: 400 mm |
