Humidity sensor HS

VTCX

Type HS

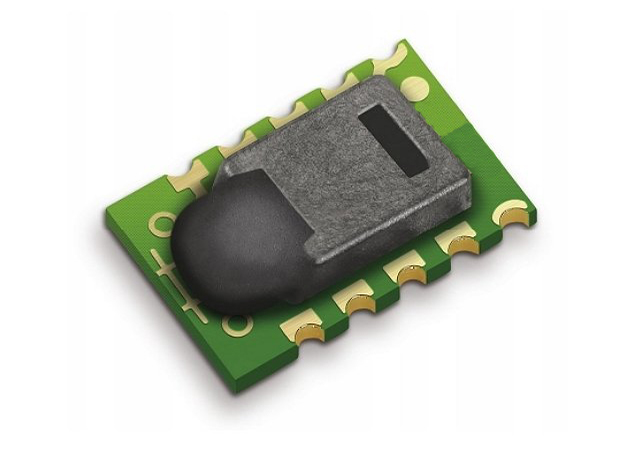

Description: VTCX-HS digital humidity and temperature sensor is the low cost version of the reflow solderable humidity sensor series.

The accuracies have been opened to a level that guarantees a very competitive price.
The capacitive humidity sensor is available up to high volumes and as every other sensor type of t.

It is fully calibrated and provides a digital output.
high-quality relative humidity sensor for demanding measurements.

Features: 1.Meteorological observation
2.Environmental control
3.Dew point measurement
4.Drying treatment
5.Program control
6.Breeding control

Introduction

◆Product specifications

Energy consumption 80uW (at 12bit, 3V, 1 measurement / s)
RH operating range 0 – 100% RH
T operating range -40 – +125°C (-40 – +257°F)
RH response time 8 sec (tau63%)
Output digital (2-wire interface)



◆Maximal accuracy limits for relative humdity and temperature
