VT
Type P10-A6LF55
Description： As an infrared temperature sensor,
thermopile can directly sense infrared thermal radiation,
convert heat into electrical signal,
the surface temperature of the object can be quickly measured without direct contact with the object to be measured.
The NTC thermistor packaged in the thermopile is used to measure the ambient temperature of the thermopile,
and use it as a temperature reference.
Features： 1.MEMS thermopile chip
2.TO-39 package
3.High sensitivity
4.Silicon lens
5.High precision NTC
6.DS ratio 10:1
◆Product application
-Non-contact temperature measurement
-Continuous monitoring of manufacturing temperature
-Consumer Electronics
-Household appliance temperature measurement
◆Rated Temperature
| Parameter | Typical Value | Unit |
| Operating Temp. | -30~100 | ℃ |
| Storage Temp. | -40~125 | ℃ |
◆Product specification
| Parameter | Symbol | Unit | Condition |
| Chip resistance | 1.8*1.8 | mm2 | |
| Film area | 1.35*1.35 | mm2 | |
| Field of view | 18 | ° | 50% of maximum signal |
| Thermopile resistance | 43±10% | kΩ | Ambient temperature 25°C |
| Noise voltage | 27±2 | nV/Hz1/2 | Ambient temperature 25°C |
| Noise equivalent power | 0.62 | nW/Hz1/2 | 500K/1Hz |
| Response rate | 43 | V/W | 500K,5.5um(long pass) |
| Temperature coefficient of resistance |
0.1 | %/℃ | 25℃/50℃ |
| Time constant | 32 | ms | |
| Detection rate | 6.8E+07 | cmHz1/2/W | 500K,1Hz |
| NTC resistance | 100±3% | kΩ | 25℃ |
| NTC B value | 3950±1% | K | 25℃/50℃ |

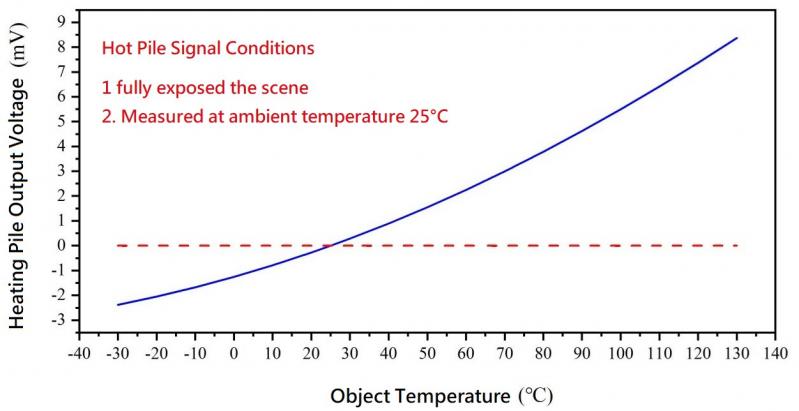

◆Typical performance curve

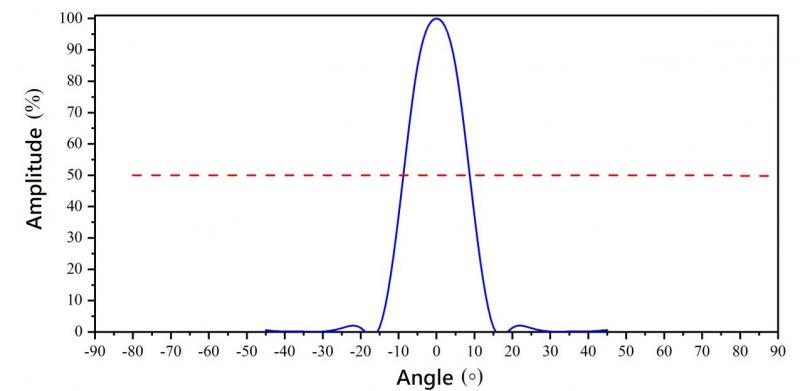

◆Optical Characteristics
| Parameters | Value | Unit | Condition |
| Field of view | 7 | ° | 50% of the maximum signal |

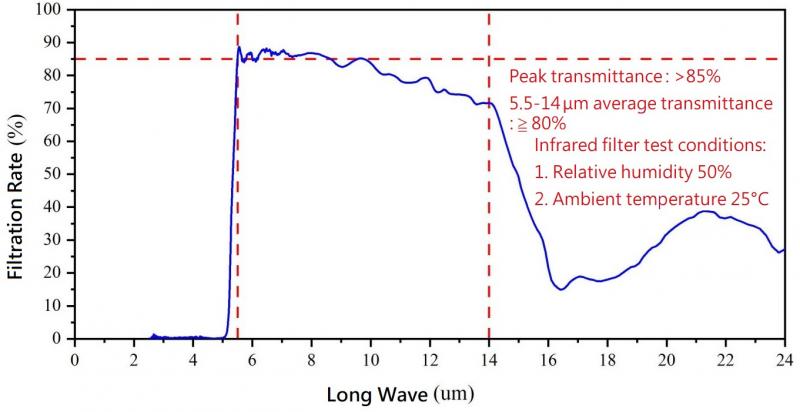

◆Filter Specifications
| Value | Unit | Condition | |
| Passed wavelength range | 5.5~14 | um | Long wave pass |
| Average transmittance | ≧80 | nm | 5.5~14um |
| Average cut-off rate | 1 | % | <5um |
◆Electrical connections
| Pin | 1 | 2 | 3 | 4 |
| Definition | Thermopile+ | NTC+ | Thermopile- | GND |
◆Dimension
◆NTC R-T Table
