VGT
Type R2

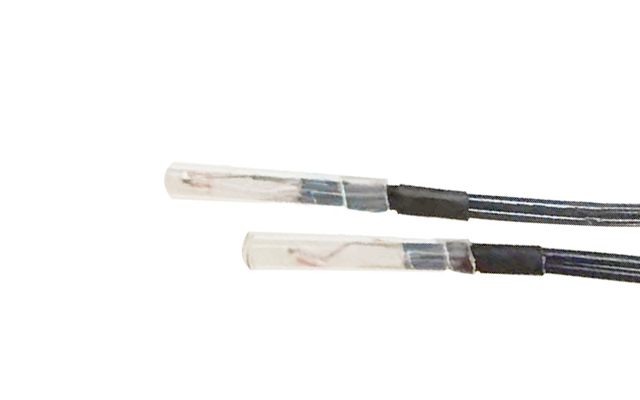

Description： This temperature sensor uses NTC single-ended glass thermistor, which has good stability.
Features： 1. Material: Glass package / high temperature resistant Teflon wire and casing.
2. Has a wide resistance range: 2KΩ to 500KΩ.
3. The temperature sensor is packaged in glass, with excellent breakdown resistance, up to 5000VDC withstand voltage, and good moisture resistance.
4. Installed inside the charging gun for temperature detection of terminals and cables.
5. Application: Temperature sensor for charging gun.
◆Characteristics
Operating temperature range: -50-300℃ (products can be customized)
Thermal time constant: approx. 5 seconds (in warm water)
Withstand voltage: AC1800V/3S without breakdown or flicker (cut-off current 1mA)
Insulation resistance: DC 500V resistance 100mΩ or more (between component and lead)
◆Order Map
| VGT | - R2 | - 102 | □ - | □□ | □□□ | - □□ |
| Series Code | Type | Res. value | Res. Tolerance | Wire Gauge | Length | Connector |
| VGT | R2 | at 25℃ 102 x 1000 Ω |
F :1% |
AWG Number | Exp : 400 400: 400 mm |
